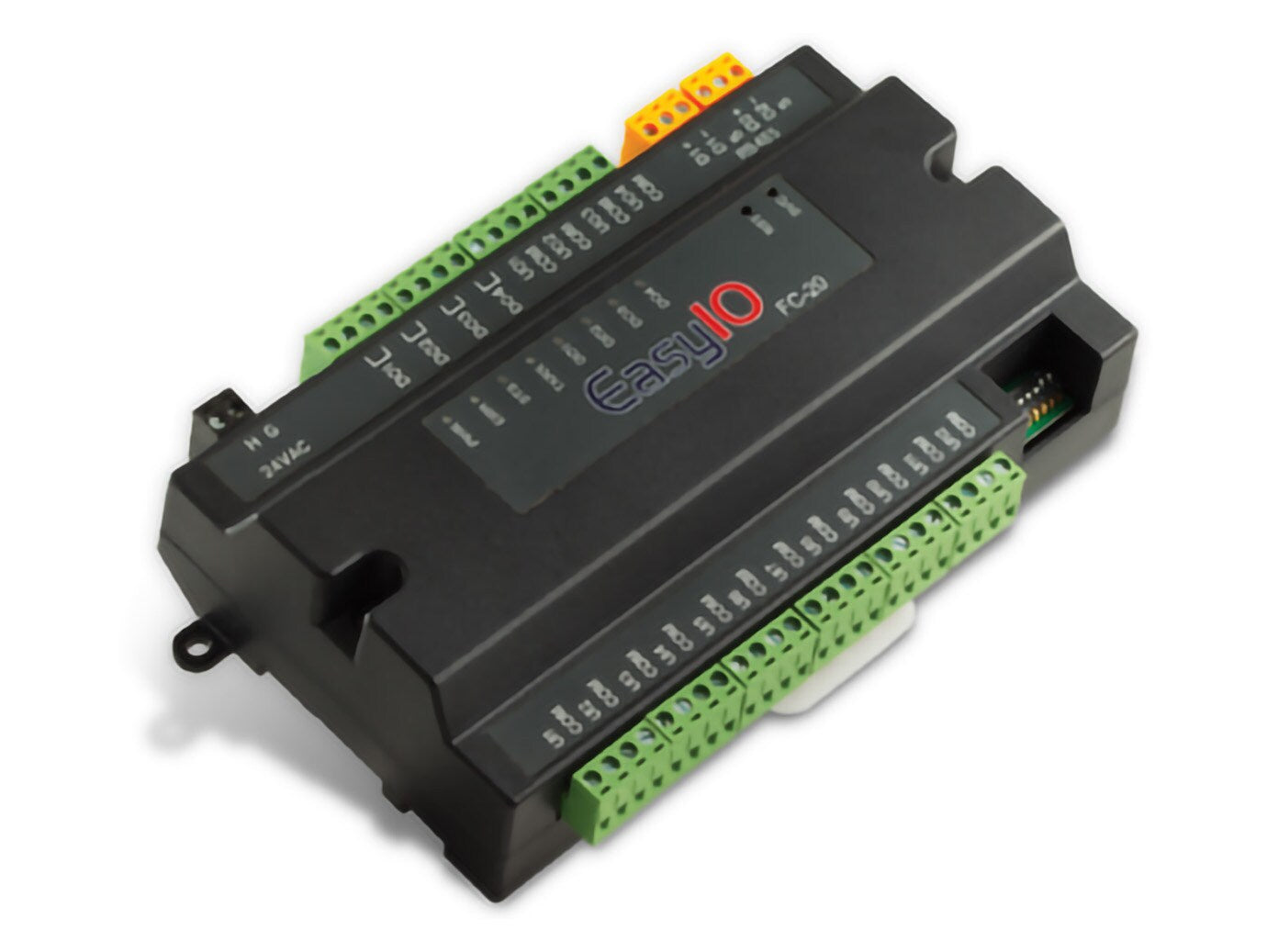

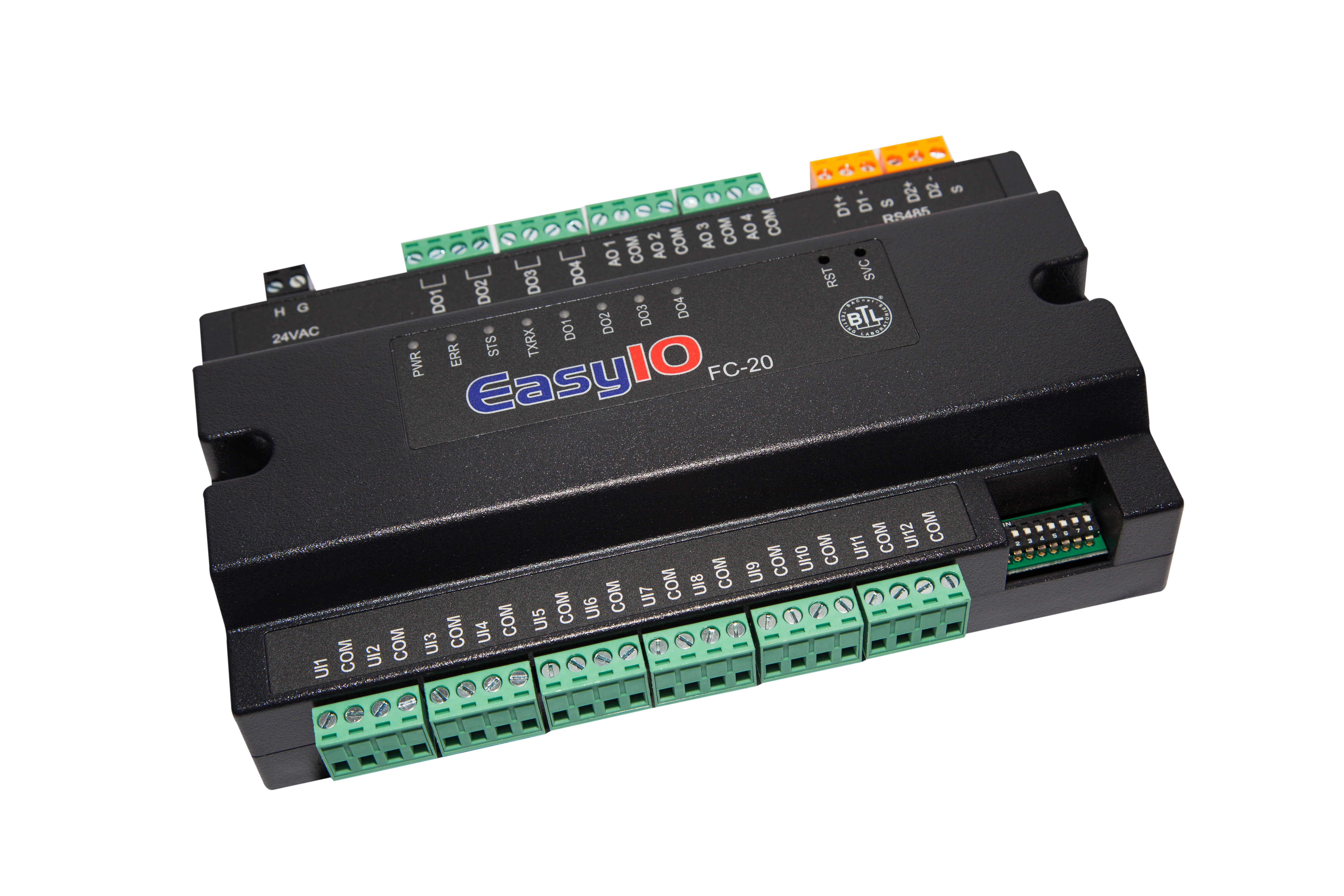

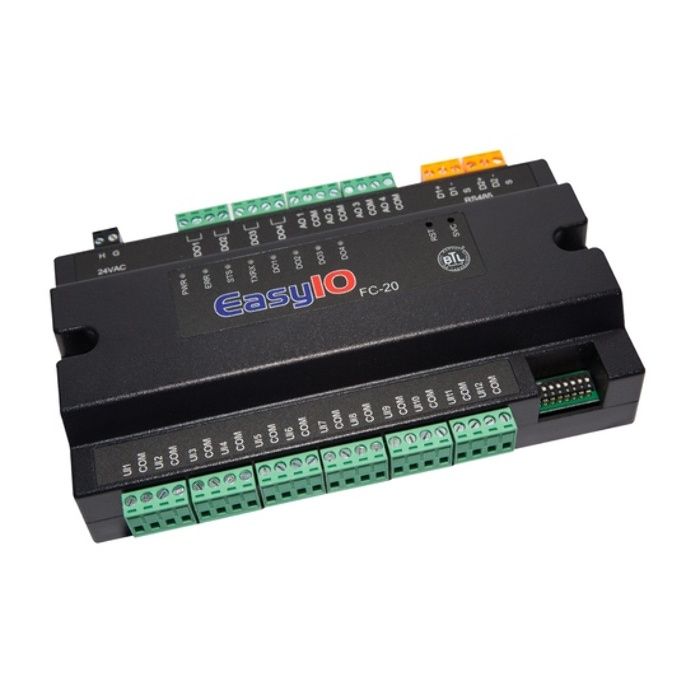

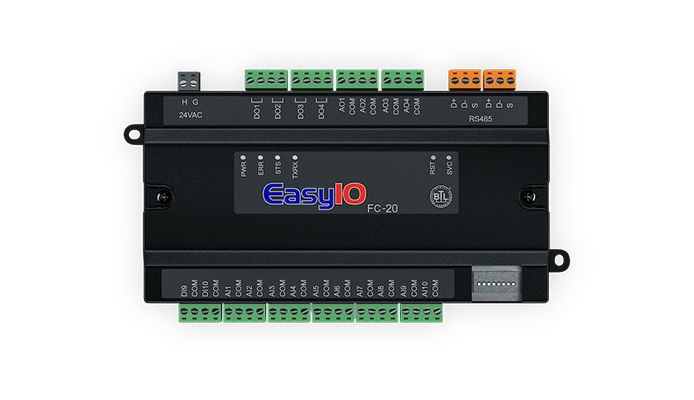

Easyio Easyio-FC-20 Fc Series Controller, 20 Io 24 VAC

Product Description

The EASYIO EASYIO-FC-20 Fc Series Controller is a general-purpose programmable controller with 20 IO. It features 12 universal inputs, 4 digital outputs, and 4 analog outputs. It supports BACnet MSTP and Modbus RTU over two RS-485 ports and is suitable for applications such as AHU, central plants, and rooftops.

• Real Time Clock
• Sedona Framework Support
• DIP Switch Selectable Communication Mode
• No HTML5 Graphics

Product Highlights

This controller supports BACnet MSTP and Modbus RTU, making it a versatile solution for various building automation needs.

Product Information

Standard Information

• Brand: EASYIO
• Manufacturer Part Number: EASYIO-FC-20
• Country of Origin: India

Technical Specifications

• IO: 20
• Type: Programmable
• Ports: RS-485
• Power: 24 VAC
• Mounting: DIN Rail Mount
• Application: AHU, Central Plants, General Purpose, Rooftop
• Operating Conditions: 32 F To 150 F (0 C To 65 C)
• Communication Network: BACnet MS/TP, Modbus RTU
• Controller Product Family: EASYIO-FC
• BACnet MSTP Server: Yes
• Modbus RTU Slave: Yes
• 12x UI: Yes
• 4x DO (with LED indicator): Yes
• 4x AO: Yes
• Model: EASY IO FC-20
• MPN: FC-20
• Brand: EASY IO
