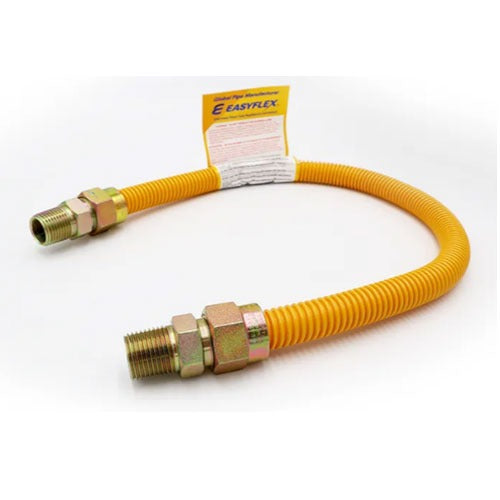

Easyflex EFGC-012-YE-1415-48 Gas Connector 5/8x48 in

Product Description

The EASYFLEX EFGC-012-YE-1415-48 is a flexible gas connector designed for connecting gas appliances to residential or light commercial gas supply lines. This corrugated stainless steel connector measures 5/8 inch in diameter and 48 inches in length, with male x female end fittings and no shutoff valve included. Flexible gas connectors of this type are installed by licensed plumbers and gas fitters to provide a safe, vibration-absorbing connection between a rigid gas supply stub-out and a gas-fired appliance. The corrugated design allows for minor positional adjustments during installation without stressing the line.

This connector is suited for residential and light commercial applications including gas ranges, dryers, water heaters, and similar appliances that require a 5/8 inch flexible supply connection. The 48 inch length provides sufficient reach for most standard appliance installations where the gas stub-out is offset from the appliance connection point. Installation is performed without a built-in valve, so a separate upstream shutoff is required per applicable codes.

Key Features

• 5/8 inch diameter corrugated flexible gas connector
• 48 inch length for versatile appliance reach
• Male x female end fittings for standard gas line connections
• No integrated shutoff valve — requires separate upstream shutoff
• Flexible corrugated design absorbs vibration and allows minor positional adjustment

Compatibility

Designed as an OEM-style replacement flexible gas connector for residential and light commercial gas appliances requiring a 5/8 inch corrugated stainless steel supply line.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or main shutoff valve before beginning work, and verify zero pressure in the line before making or breaking any connections. Do not kink, over-bend, or reuse a previously installed flexible connector. After installation, test all connections for leaks using an approved gas leak detection solution before restoring gas service.

Technical Specifications

• Diameter: 5/8 inch
• Length: 48 inches
• End Fittings: Male x Female
• Valve: None (no valve)

Standard Information

• Brand: EASYFLEX
• Manufacturer Part Number: EFGC-012-YE-1415-48
