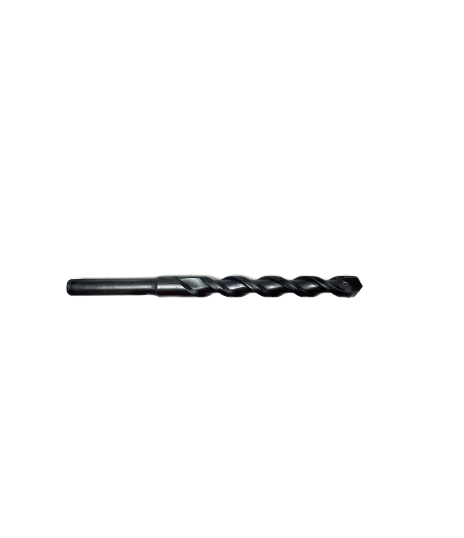

Eagle Cutting Tool VM4350-048-6-D Masonry Drill Bit

Product Description

The EAGLE CUTTING TOOL VM4350-048-6-D is a carbide-tipped masonry drill bit designed for boring through concrete, block, brick, and other masonry substrates. The bit measures 3/4 inch in diameter with a 6 inch overall length, giving tradespeople adequate depth clearance for anchor holes, conduit penetrations, and mechanical fastener installations. The carbide tip is brazed to the steel body to maintain cutting edge integrity under the abrasive loads typical of masonry drilling. This bit is manufactured in the USA and is suited for use by electricians, plumbers, HVAC installers, and general contractors who require reliable masonry penetration on the job site.

This drill bit is appropriate for residential and light commercial applications where penetrations through poured concrete, CMU block, brick, or similar hard substrates are required. Common install scenarios include setting anchor bolts, routing conduit or pipe through foundation walls, and creating pass-throughs for mechanical systems. The 3/4 inch diameter suits standard sleeve anchor and drop-in anchor sizes commonly specified in structural and mechanical fastening work.

Key Features

• Carbide tip brazed to steel body for extended cutting life in abrasive masonry materials
• 3/4 inch diameter accommodates standard anchor sleeve and drop-in anchor installations
• 6 inch overall length provides depth clearance for typical wall and slab penetrations
• USA manufactured
• Minimum order quantity of 1 unit

Compatibility

Designed as an OEM-style replacement or direct-use carbide-tipped masonry drill bit compatible with standard rotary and hammer drill chucks accepting 3/4 inch shank tooling.

Installation Notes

Masonry drill bits of this type are installed by electricians, plumbers, HVAC technicians, and general contractors using rotary hammer drills or hammer drills. Always wear appropriate eye and respiratory protection when drilling masonry due to silica dust hazards. Confirm the drill mode setting matches the substrate — rotary hammer mode for concrete and block, standard rotation for softer brick or tile. Follow applicable OSHA silica dust control requirements and local building codes when making structural penetrations.

Technical Specifications

• Diameter: 3/4 inch
• Overall Length (OAL): 6 inches
• Tip Material: Carbide
• Country of Origin: USA
• Weight: 0.75 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: VM4350-048-6-D
