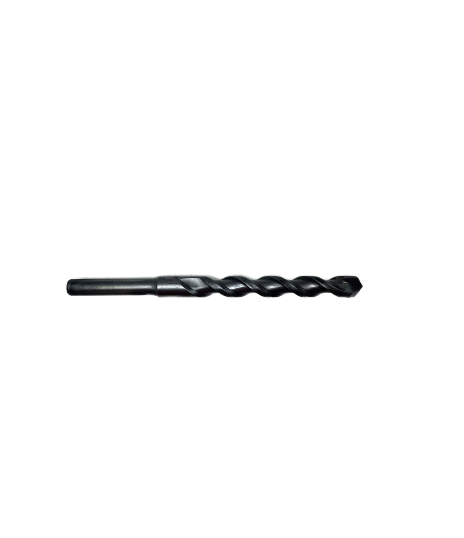

Eagle Cutting Tool VM4350-036-6-2-D Masonry Drill Bit

Product Description

The EAGLE CUTTING TOOL VM4350-036-6-2-D is a carbide-tipped masonry drill bit designed for boring through concrete, block, brick, and similar hard masonry materials. The 9/16-inch cutting diameter and 6-inch overall length (OAL) make it suited for through-hole and anchor-setting applications in both new construction and retrofit work. The carbide tip provides the hardness needed to penetrate aggregate without rapid wear. This bit is manufactured in the USA and is the type of tool stocked by electricians, plumbers, HVAC techs, and general contractors who regularly drill into masonry substrates.

This bit is appropriate for residential and commercial masonry drilling tasks, including setting sleeve anchors, through-bolts, and conduit penetrations in concrete block or poured concrete walls. At 9/16-inch diameter, it is commonly used for 3/8-inch and 1/2-inch anchor installations depending on anchor manufacturer specifications. It is compatible with standard rotary hammer and hammer drill chucks that accept straight-shank bits.

Key Features

• Carbide-tipped cutting head for durability in hard masonry materials
• 9/16-inch cutting diameter for anchor and penetration work
• 6-inch overall length provides reach for deeper penetrations
• Manufactured in the USA
• Straight shank compatible with standard hammer drill and rotary hammer chucks

Compatibility

Designed as an OEM-style masonry drill bit for use with standard hammer drills and rotary hammers accepting straight-shank tooling. No specific model compatibility data was provided in the product input.

Installation Notes

Masonry drilling is typically performed by electricians, plumbers, HVAC installers, and general contractors during rough-in and anchor-setting phases. Always wear eye protection and a dust mask when drilling masonry, as silica dust is a respiratory hazard. Use the hammer drill or rotary hammer setting appropriate for the substrate, and clear debris from the hole before setting anchors. Do not use this bit in standard drill-only mode on hard concrete, as this will damage the bit and reduce hole quality.

Technical Specifications

• Cutting Diameter: 9/16 inches
• Overall Length (OAL): 6 inches
• Tip Material: Carbide
• Country of Origin: USA
• Weight: 0.75 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: VM4350-036-6-2-D
