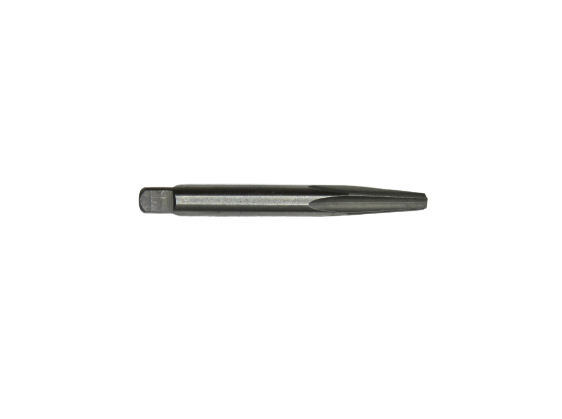

Eagle Cutting Tool TSE500-SP1-I Spiral Screw Extractor

Product Description

The EAGLE CUTTING TOOL TSE500-SP1-I is a Size 1 spiral screw extractor designed to remove broken, stripped, or seized fasteners from metal, wood, and plastic workpieces. The spiral flute design bites into the damaged fastener as it is turned counterclockwise, drawing the extractor deeper for a secure grip and controlled removal. At 0.2 pounds, this is a compact, single-piece tool suited for use by machinists, plumbers, electricians, HVAC technicians, and general maintenance professionals who regularly deal with fastener failures.

The TSE500-SP1-I is used wherever a fastener head has been damaged beyond the reach of a standard driver or where a bolt or stud has broken flush with or below the surface. Typical applications include removing broken machine screws, damaged set screws, and snapped studs in equipment housings, pipe fittings, junction boxes, and HVAC components. The Size 1 designation targets smaller-diameter fasteners, making it a go-to choice for precision work in tight spaces.

Key Features

• Spiral flute geometry grips damaged fasteners under counterclockwise torque
• Size 1 for smaller-diameter broken or stripped fasteners
• Lightweight at 0.2 pounds for easy handling and portability
• Compatible with standard T-handle, tap wrench, or drill chuck drives
• Suitable for use in metal, wood, and plastic substrates

Compatibility

Designed as a general-purpose Size 1 spiral screw extractor for use with standard T-handle wrenches, tap wrenches, or drill chucks in typical fastener removal applications.

Installation Notes

De-energize or shut off equipment before attempting fastener removal in any electrical, HVAC, or plumbing application. A center punch and drill are typically used to create a pilot hole in the broken fastener before seating the extractor. Apply steady, controlled counterclockwise torque to avoid snapping the extractor in the workpiece. Follow applicable trade codes and manufacturer guidelines for the equipment being serviced.

Technical Specifications

• Size: 1
• Weight: 0.2 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TSE500-SP1-I
