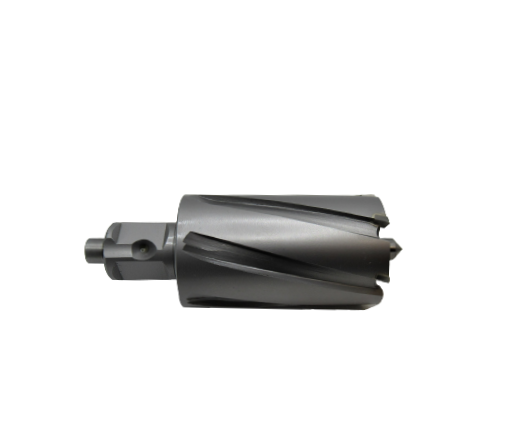

Eagle Cutting Tool TFZ-27138-ET Carbide Tipped Cutter

Product Description

The EAGLE CUTTING TOOL TFZ-27138-ET is a carbide tipped cutter designed for precision hole cutting in metal, wood, and composite materials. With a 1-3/16 inch cutting diameter and a 1 inch depth of cut (length of cut), this annular cutter delivers clean, burr-free through-holes in a single pass. The carbide tipped cutting edges provide extended tool life compared to standard high-speed steel cutters, making this tool well suited for repetitive production drilling and field fabrication work. Machinists, ironworkers, pipefitters, and structural steel fabricators are the typical end users for this style of cutter.

This cutter is intended for use with magnetic drill presses and compatible benchtop or floor-standing drill units that accept standard annular cutter arbors. It is commonly used in structural steel fabrication, HVAC duct and framing work, shipbuilding, and general metalworking applications where accurate, full-diameter holes are required without center drilling. The 1-3/16 inch diameter is a frequently specified size for bolt clearance, conduit pass-through, and pipe connection holes in steel plate and tube stock.

Key Features

• Carbide tipped cutting edges for extended tool life and heat resistance
• 1-3/16 inch cutting diameter for bolt clearance and standard pass-through applications
• 1 inch depth of cut accommodates typical steel plate and structural section thicknesses
• Annular cutter design removes only the outer core, reducing cutting force and chip volume
• Compatible with standard magnetic drill press arbors used across major drill platforms

Compatibility

Designed as an OEM-style annular cutter for use with magnetic drill presses and drill stands that accept standard annular cutter arbors with the appropriate shank size. Verify arbor shank compatibility with your drill unit before installation.

Installation Notes

This cutter is installed and serviced by machinists, fabricators, and ironworkers using magnetic drill presses. Always power down and de-energize the drill unit before mounting or removing the cutter from the arbor. Use cutting fluid appropriate for the workpiece material to extend carbide edge life and reduce heat buildup. Secure the magnetic drill base fully to the workpiece before operation and confirm the ejector pin is properly seated in the arbor before cutting.

Technical Specifications

• Cutting Diameter: 1-3/16 inches
• Depth of Cut (Length of Cut): 1 inch
• Cutter Type: Carbide Tipped Annular Cutter
• Weight: 0.97 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TFZ-27138-ET
