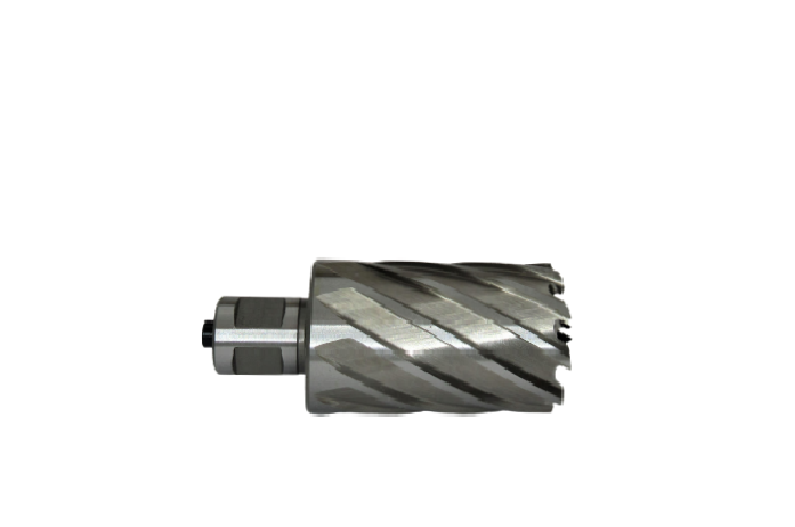

Eagle Cutting Tool TFZ-25164-ET Cobalt Annular Cutter

Product Description

The EAGLE CUTTING TOOL TFZ-25164-ET is a cobalt annular cutter designed for cutting precise, clean-edged holes in ferrous and hard metals. With a 2-inch cutting diameter and 1-inch depth of cut (length of cut), this tool removes only the material at the hole perimeter rather than the full core, reducing cutting force and extending tool life compared to solid twist drills. It is used with magnetic drill presses and annular cutter-compatible drill press adapters on job sites and in fabrication shops. Machinists, ironworkers, pipefitters, and structural steel fabricators are the primary users of this cutter type.

This cutter is suited for applications in structural steel fabrication, pipe fitting, and metal construction where repeatable, burr-minimized holes are required in steel plate, angle iron, tube, and similar ferrous stock. The cobalt construction provides additional heat and wear resistance compared to standard high-speed steel cutters, making it a reliable choice for production drilling and on-site magnetic drill work where extended run times are common.

Key Features

• Cobalt construction for increased heat resistance and extended cutting life in ferrous metals
• 2-inch cutting diameter delivers large-diameter holes in a single pass
• 1-inch depth of cut suitable for standard steel plate and structural profiles
• Annular (core-cutting) geometry reduces required torque and minimizes heat buildup vs. solid drill bits
• Compatible with standard magnetic drill press arbors used in structural and mechanical trades

Compatibility

Designed as an OEM-style replacement and production annular cutter for use with magnetic drill presses and drill press adapters accepting standard annular cutter shanks with the appropriate arbor fitment.

Installation Notes

Installation and use should be performed by qualified machinists, ironworkers, or pipefitters familiar with magnetic drill press operation. Ensure the magnetic drill base is fully energized and seated on a clean, flat metal surface before beginning the cut, and confirm the arbor and cutter are securely locked before applying feed pressure. Always use cutting fluid appropriate for ferrous metals to manage heat and extend cutter life. Disconnect power to the drill before changing or inspecting the cutter.

Technical Specifications

• Cutting Diameter: 2 inches
• Depth of Cut (Length of Cut): 1 inch
• Cutter Material: Cobalt
• Weight: 0.97 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TFZ-25164-ET
