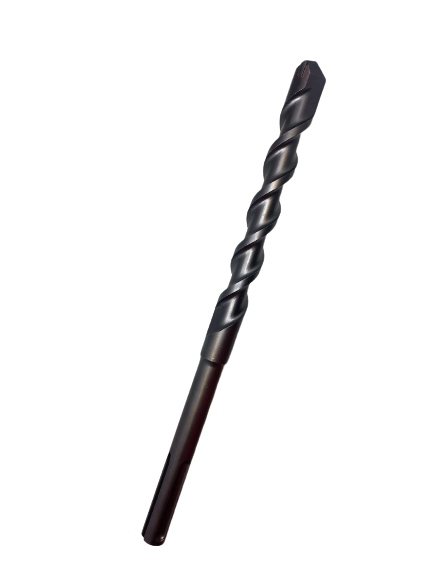

Eagle Cutting Tool SDSM-5000-30-D Sds Max Drill Bit

Product Description

The EAGLE CUTTING TOOL SDSM-5000-30-D is a 1/2-inch diameter SDS Max rotary hammer drill bit with an overall length of 30 inches. Designed for heavy-duty concrete, masonry, and stone boring applications, this bit accepts the SDS Max chuck interface standard found on full-size demolition-class rotary hammers. It is manufactured in the USA. At 2.16 pounds, the bit carries enough mass for deep-bore applications while remaining manageable during extended overhead or horizontal drilling. Electricians, plumbers, and general contractors commonly reach for a bit in this size class when core-routing conduit or pipe sleeves through thick concrete walls and foundations.

This bit is suited for residential and commercial jobsite work where a standard-shank bit cannot provide the required penetration depth. The 30-inch working length handles thick pour slabs, masonry block walls, and other structural assemblies that shorter bits cannot reach. It fits rotary hammers equipped with the SDS Max chuck system, which is the common interface on larger-frame hammers used in professional trade work. Typical applications include anchor-hole drilling, through-wall penetrations for mechanical and electrical rough-in, and deep concrete boring where bit walkout and vibration control are priorities.

Key Features

• 1/2-inch cutting diameter for standard anchor and conduit-sleeve hole sizing
• 30-inch overall length for deep-bore penetrations through thick slabs and block walls
• SDS Max shank interface for compatibility with full-size professional rotary hammers
• USA manufactured
• Weighs 2.16 pounds, balancing reach with handling during extended drilling

Compatibility

Designed as a direct-fit bit for rotary hammers equipped with the SDS Max chuck interface, which is standard on full-size professional-grade demolition and rotary hammer tools.

Installation Notes

Installation of this bit is performed by licensed electricians, plumbers, HVAC mechanics, and general contractors during structural penetration and rough-in work. Before drilling, confirm the rotary hammer is powered off and the bit is fully seated and locked in the SDS Max chuck. Wear appropriate PPE including eye protection and dust control per OSHA and local jobsite requirements. Do not use this bit with hammers that accept only SDS Plus or spline-drive chucks, as the SDS Max shank will not seat correctly in those tools.

Technical Specifications

• Shank Type: SDS Max
• Cutting Diameter: 1/2 inches
• Overall Length: 30 inches
• Weight: 2.16 pounds
• Country of Origin: USA

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SDSM-5000-30-D
