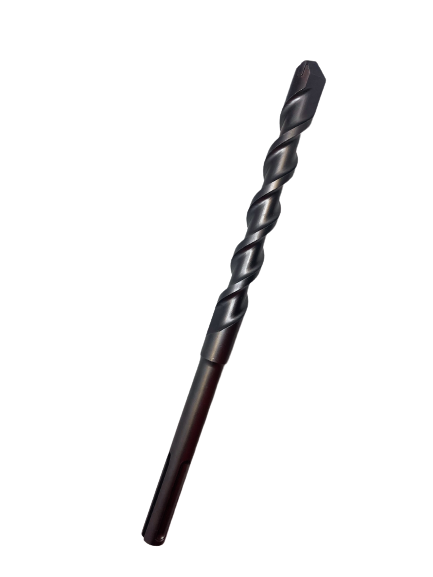

Eagle Cutting Tool SDSM-12500-23-D Sds Max Masonry Drill Bit

Product Description

The EAGLE CUTTING TOOL SDSM-12500-23-D is an SDS Max shank masonry drill bit built for heavy-duty rotary hammer drilling in concrete, brick, block, and stone. With a 1-1/4 inch cutting diameter and a 23.5 inch overall length, this bit is sized for deep anchor, core, and penetration work that standard-length bits cannot reach. It is manufactured in the USA and weighs 3.2 pounds. Licensed electricians, mechanical contractors, and concrete trades typically reach for a bit in this class when setting anchor bolts, running conduit sleeves, or boring through foundation walls and structural concrete.

This bit is intended for use with SDS Max rotary hammers in hammer-drill or chipping mode. The SDS Max shank interface provides a secure, tool-free bit change and efficiently transfers hammer energy into the cutting tip. At 23.5 inches OAL and 1-1/4 inch diameter, it suits commercial and industrial applications where depth and hole size requirements exceed what a standard SDS Plus bit can handle. Concrete flatwork, block wall penetrations, and structural anchor installations are all common use cases for this size class.

Key Features

• SDS Max shank for compatibility with heavy-duty rotary hammer tools
• 1-1/4 inch cutting diameter for anchor and sleeve applications
• 23.5 inch overall length for deep-penetration drilling
• Manufactured in the USA
• 3.2 pound weight class appropriate for a full-length SDS Max bit

Compatibility

Designed for use with SDS Max rotary hammers. The SDS Max shank is an industry-standard interface found on full-size rotary hammers from major tool manufacturers.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with rotary hammer operation and applicable codes such as the NEC or IBC anchor requirements. Before drilling, verify no embedded conduit, rebar, or post-tension cable runs through the work area using a concrete scanner. Insert the bit fully into the SDS Max chuck until it locks, and confirm the retaining collar is seated before applying power. Wear appropriate PPE including eye protection and hearing protection during operation.

Technical Specifications

• Shank Type: SDS Max
• Cutting Diameter: 1-1/4 inches
• Overall Length (OAL): 23.5 inches
• Weight: 3.2 pounds
• Country of Origin: USA

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SDSM-12500-23-D
