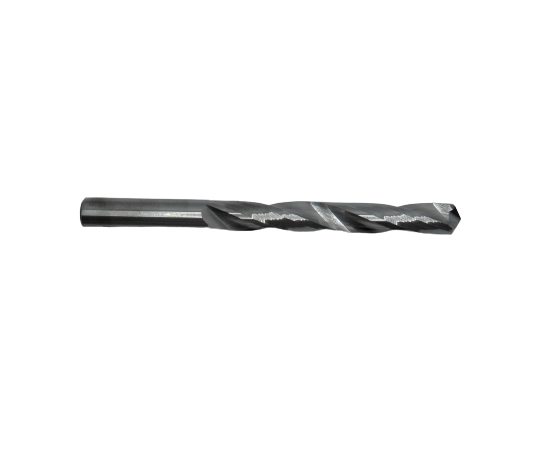

Eagle Cutting Tool SCD100-026-D Carbide Jobber Drill 13/32

Product Description

The EAGLE CUTTING TOOL SCD100-026-D is a solid carbide jobber-length drill bit ground to a 13/32 inch diameter. Solid carbide construction provides significantly greater hardness and wear resistance compared to high-speed steel, making this bit well suited for drilling hard metals, cast iron, stainless steel, and abrasive composite materials. The jobber-length flute geometry balances reach and rigidity for general-purpose hole-making. Machinists, tool and die makers, and metalworking professionals are the primary users of this drill.

This drill is used in production machining, job shop, and maintenance environments where consistent hole tolerance and tool life in hard or abrasive workpiece materials are required. It is appropriate for use in CNC machining centers, drill presses, and manual mills where the spindle and toolholding setup can support the rigidity that solid carbide requires. Applications include ferrous and non-ferrous metal fabrication, aerospace component work, and precision mechanical assembly.

Key Features

• Solid carbide construction for superior hardness and extended tool life in hard and abrasive materials
• 13/32 inch diameter for precise hole sizing in metalworking applications
• Jobber-length flute design balances drilling depth with bit rigidity
• USA manufactured to consistent dimensional tolerances

Compatibility

Designed as a standard jobber-length solid carbide drill bit suitable for use in CNC machining centers, drill presses, and milling machines equipped with compatible toolholding systems sized for a 13/32 inch shank.

Installation Notes

Solid carbide drills require rigid machine setups with minimal runout in the toolholder; excessive runout or loose fixturing will cause premature breakage. Ensure the spindle and chuck or collet are clean and properly secured before use. Solid carbide is brittle compared to high-speed steel and should not be used in hand-held drill applications. Use appropriate cutting fluid for the workpiece material to manage heat and extend tool life.

Technical Specifications

• Diameter: 13/32 inch
• Drill Type: Jobber Length
• Construction: Solid Carbide
• Country of Origin: USA
• Weight: 1.2 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SCD100-026-D
