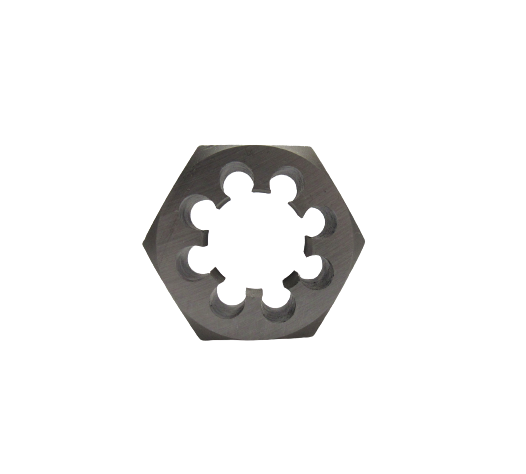

Eagle Cutting Tool NHD-5000-14-I Carbon Npt Hex Die 1/2-14

Product Description

The EAGLE CUTTING TOOL NHD-5000-14-I is a carbon steel NPT pipe hex die sized for 1/2-14 thread specification. Hex dies of this type are used to cut external National Pipe Taper threads on pipe stock, producing leak-resistant tapered threads that meet NPT standards. The hex body design allows use with a standard pipe die stock handle for controlled, consistent thread cutting. This die is suited for plumbing, pipefitting, and mechanical piping work where new threads must be cut in the field or shop.

This die is appropriate for residential and commercial plumbing, HVAC piping, and general mechanical piping applications where 1/2-inch NPT threads are required. It is commonly used by licensed plumbers, pipefitters, and HVAC technicians cutting threads on black iron, galvanized, or other compatible pipe materials. The 1/2-14 designation indicates a 1/2-inch nominal pipe size with 14 threads per inch, conforming to NPT taper thread form.

Key Features

• 1/2-14 NPT thread specification for 1/2-inch nominal pipe
• Carbon steel construction for thread cutting on pipe stock
• Hex body design compatible with standard pipe die stock handles
• Produces tapered NPT threads for pressure-rated pipe joints
• Lightweight at 0.37 pounds for easy handling in field applications

Compatibility

Designed as an OEM-style replacement or standard service die for use in hex-style pipe die stocks accepting 1/2-14 NPT dies.

Installation Notes

Thread cutting with this die should be performed by a qualified plumber or pipefitter familiar with NPT thread standards. Secure the pipe firmly in a pipe vise before beginning the threading operation, and apply cutting oil generously throughout the process to extend die life and produce clean threads. Inspect the finished threads with an NPT thread gauge or fitting test before assembly. Follow applicable IPC and IFGC requirements for pipe jointing and pressure testing after installation.

Technical Specifications

• Thread Specification: 1/2-14 NPT
• Material: Carbon Steel
• Body Style: Hex
• Weight: 0.37 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: NHD-5000-14-I
