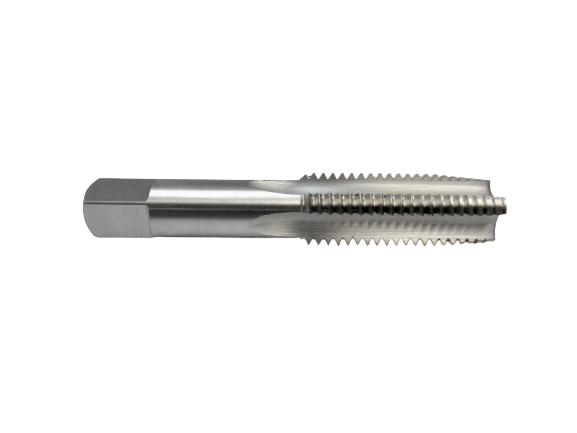

Eagle Cutting Tool MT-330-350-T-I Hss Metric Taper Tap

Product Description

The EAGLE CUTTING TOOL MT-330-350-T-I is a high-speed steel (HSS) metric taper tap designed to cut M33.0 threads with a 3.50 mm pitch. Taper taps feature a gradual lead that distributes cutting load across several threads, making them well-suited for starting threads in through-holes or beginning the threading process in blind holes before a plug or bottoming tap is used. This tap is an import-grade tool intended for use in production shops, maintenance facilities, and trade settings where reliable metric threading is required.

This tap is used for cutting M33.0x3.50 internal threads in ferrous and non-ferrous metals. The taper style is the standard first choice for initiating threads in through-holes on structural components, pipe flanges, machinery frames, and fabricated assemblies. It is appropriate for both manual tapping with a tap wrench and use in low-speed machine tapping setups. Machinists, maintenance mechanics, and fabricators working to metric thread standards will find this tool appropriate for general-purpose threading operations.

Key Features

• M33.0x3.50 thread form for standard metric threading applications
• High-speed steel (HSS) construction for hardness and wear resistance across common workpiece materials
• Taper lead distributes cutting force gradually, reducing the risk of tap breakage on thread entry
• Import-grade pricing suitable for general-purpose and production use
• Minimum order quantity of 1, available as a single unit

Compatibility

Designed as a general-purpose metric taper tap for cutting M33.0x3.50 internal threads in materials compatible with HSS tooling.

Installation Notes

Always use the correct tap drill size for M33.0x3.50 threads before tapping. Apply cutting fluid appropriate for the workpiece material to reduce heat and extend tool life. Use steady, controlled pressure and back off periodically to break chips, especially in blind-hole applications. Inspect the tap for wear or damage before each use and never force a tap that has stalled.

Technical Specifications

• Thread Size: M33.0x3.50
• Pitch: 3.50 mm
• Tap Type: Taper
• Material: High-Speed Steel (HSS)
• Weight: 0.97 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MT-330-350-T-I
