Eagle Cutting Tool MT-330-200-B-I Hss Metric Bottom Tap

Product Description

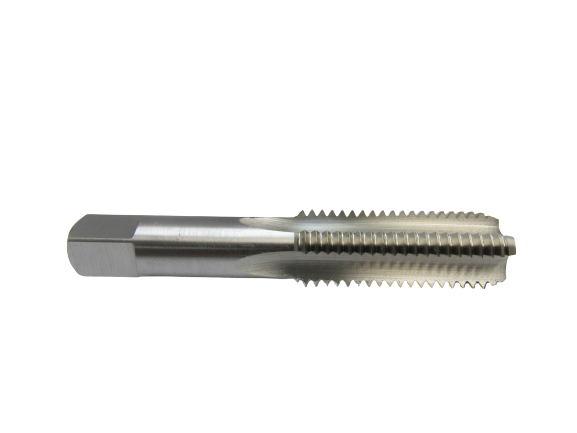

The EAGLE CUTTING TOOL MT-330-200-B-I is an M33.0x2.00 high-speed steel (HSS) metric bottom tap designed for cutting full threads to the bottom of blind holes. With a 33 mm major diameter and a 2.00 mm thread pitch, this tap handles metric threading applications in ferrous and non-ferrous materials where standard taper or plug taps cannot reach the thread depth required. It is imported manufacture and suited for use in production shops, maintenance facilities, and trade settings where metric fastener threads must be cut with precision and repeatability.

This bottom tap is used in metalworking and mechanical trade applications where blind-hole threading is required. Its ground HSS construction holds up across steel, aluminum, cast iron, and similar materials. Machinists, pipefitters, and maintenance technicians working on metric-threaded assemblies will find it appropriate for both hand-tapping and machine-tapping setups where full thread depth to the base of a hole is the objective.

Key Features

• M33.0x2.00 metric thread profile for standard metric fastener compatibility
• Bottom tap geometry allows full threading to the base of blind holes
• High-speed steel (HSS) construction for durability across ferrous and non-ferrous materials
• Suitable for hand-tapping and machine-tapping applications
• Minimum order quantity of 1 unit

Compatibility

Designed as an OEM-style replacement or direct-use metric bottom tap for M33.0x2.00 threaded applications in standard metric hole patterns.

Installation Notes

Bottom taps should be used only after a taper or plug tap has established the thread lead in the hole. Always apply cutting fluid to reduce friction and extend tap life. Secure the workpiece firmly before tapping, and back off periodically to break chips and prevent tap breakage. This work is typically performed by machinists or qualified maintenance technicians following standard shop safety practices.

Technical Specifications

• Thread Size: M33.0x2.00
• Tap Type: Bottom
• Material: High-Speed Steel (HSS)
• Thread Standard: Metric
• Weight: 2.03 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MT-330-200-B-I
