Eagle Cutting Tool MHD-120-125-I Metric Hex Die

Product Description

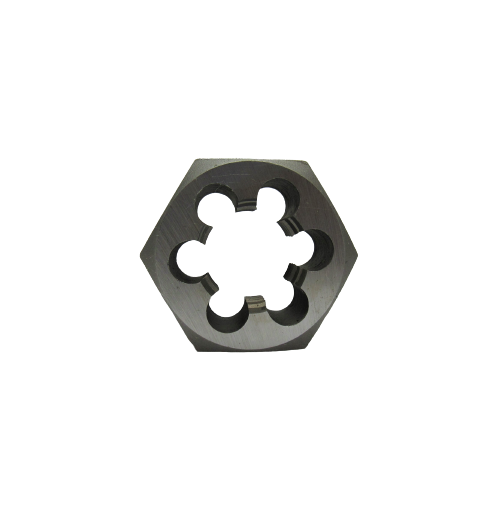

The EAGLE CUTTING TOOL MHD-120-125-I is a carbon steel metric hex die designed to cut external M12.0x1.25 threads on bolts, studs, and round stock. The hex body profile allows standard wrench engagement for controlled torque during thread cutting. At 0.48 pounds, it is compact enough for bench work or field use. Machinists, pipefitters, and maintenance technicians use this die when restoring damaged threads or creating new threads on metric fasteners with a 1.25 mm pitch.

This die is suited for threading mild steel, aluminum, and similar metals in light manufacturing, maintenance, and repair applications. The M12.0x1.25 specification is a fine-pitch metric thread commonly found in automotive and industrial fastener applications. It is used with a standard hex die stock or wrench sized for the hex body. Both shop and field installations are appropriate given its compact form and weight of 0.48 pounds.

Key Features

• M12.0x1.25 thread specification for fine-pitch metric external threading
• Hex body profile for wrench-drive engagement during thread cutting
• Carbon steel construction suitable for threading mild steel and aluminum stock
• Lightweight at 0.48 pounds for portable and bench use

Compatibility

Designed as a standard metric hex die for use with hex die stocks or wrenches sized to fit the hex body. Intended for cutting M12.0x1.25 external threads on round stock and fasteners.

Installation Notes

Thread cutting dies are installed and operated by machinists and maintenance technicians familiar with manual threading procedures. Secure the workpiece in a vise before engaging the die. Apply cutting oil to the die and workpiece to reduce heat and extend tool life. Follow standard shop safety practices when handling cutting tools.

Technical Specifications

• Thread Size: M12.0x1.25
• Thread Type: Metric Fine Pitch
• Die Body Style: Hex
• Material: Carbon Steel
• Weight: 0.48 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-120-125-I
