Eagle Cutting Tool MHD-050-080-I Metric Hex Die

Product Description

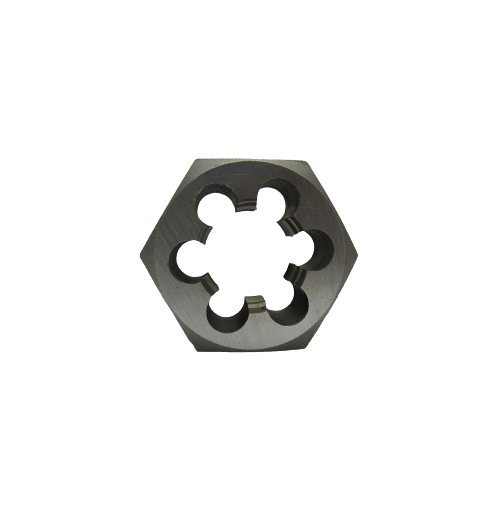

The EAGLE CUTTING TOOL MHD-050-080-I is a carbon steel metric hex die sized for M5.00 threads with a 0.80 mm pitch. Hex dies are used to cut external threads on round stock, bolts, and fasteners. The hex body allows a standard open-end wrench or die stock to grip and drive the die during threading operations. This die is an import-grade tool suited for general metalworking, maintenance, and repair applications where standard metric threads are required.

This metric hex die is appropriate for use in machine shops, maintenance facilities, and field repair situations. It cuts M5.00 x 0.80 threads, a common fastener size found throughout automotive, mechanical, and general fabrication work. Machinists, maintenance technicians, and skilled tradespeople working with metric-standard fasteners will find this die sized for frequent, everyday threading tasks.

Key Features

• M5.00 x 0.80 mm metric thread specification for standard fastener compatibility
• Hex body design accepts open-end wrenches or standard die stocks for easy driving
• Carbon steel construction suitable for threading mild steel, aluminum, and similar materials
• Compact size and lightweight at 0.48 pounds for easy handling and storage

Compatibility

Designed as a replacement or additional die for use with standard hex die stocks and holders sized for M5.00 x 0.80 metric threading applications.

Installation Notes

Threading dies should be installed and driven by a qualified machinist or maintenance technician using an appropriate die stock or open-end wrench. Ensure the workpiece is securely clamped before beginning thread cutting. Apply cutting oil to the die and workpiece to reduce heat and extend die life. Inspect the die for wear or damage before each use.

Technical Specifications

• Thread Size: M5.00
• Thread Pitch: 0.80 mm
• Die Type: Hex
• Material: Carbon Steel
• Weight: 0.48 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-050-080-I
