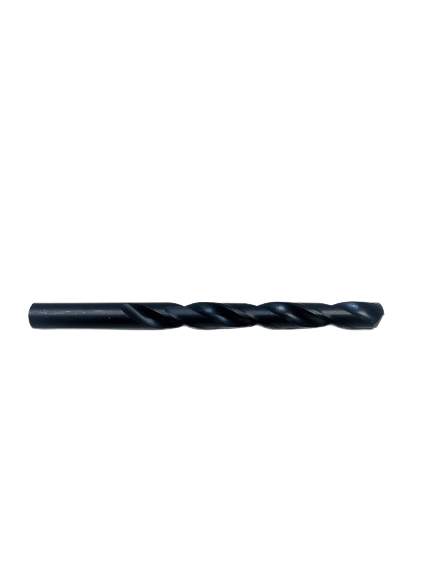

Eagle Cutting Tool H200-023-D Hss Jobber Drill Bit 23/64

Product Description

The EAGLE CUTTING TOOL H200-023-D is a heavy-duty high-speed steel jobber-length drill bit designed for reliable performance in demanding drilling applications. Ground to a 135-degree split point, this bit self-centers on contact and reduces the need for a center punch on most materials. At 23/64 inch in diameter, it fits standard drill chucks and is manufactured in the USA. This bit is suited for machinists, pipefitters, ironworkers, maintenance technicians, and other trades requiring a durable, general-purpose drill bit for production or field work.

The H200-023-D is intended for use in ferrous and non-ferrous metals, plastics, and wood composites where a jobber-length reach is appropriate. Its heavy-duty construction makes it a go-to choice for repetitive drilling in shop environments, fabrication work, and on-site mechanical or structural applications. The 135-degree split point geometry reduces thrust and minimizes walking on flat or curved surfaces, making it practical for use in a hand drill or drill press without a center punch.

Key Features

• 135-degree split point reduces walking and lowers drilling thrust
• High-speed steel construction for heat and wear resistance
• Heavy-duty designation indicates reinforced land geometry for longer service life
• 23/64 inch diameter fits standard 3/8-inch and 1/2-inch chuck capacities
• Jobber-length design provides balanced reach and rigidity for general use
• Manufactured in the USA

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with standard keyed and keyless drill chucks accepting up to 1/2-inch shank diameters, suitable for drill presses, magnetic drills, and handheld power drills.

Installation Notes

Installation is performed by machinists, maintenance technicians, fabricators, and trade professionals using standard drill equipment. Secure the bit firmly in the chuck before operation and confirm the workpiece is clamped or secured to prevent movement. Use appropriate cutting fluid when drilling harder metals to extend bit life and reduce heat buildup. Inspect the cutting edges for wear or damage before each use and replace when the geometry is no longer sharp.

Technical Specifications

• Diameter: 23/64 inch
• Point Angle: 135 degrees split point
• Material: High-Speed Steel (HSS)
• Drill Type: Jobber Length, Heavy Duty
• Country of Origin: USA
• Weight: 1.2 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: H200-023-D
