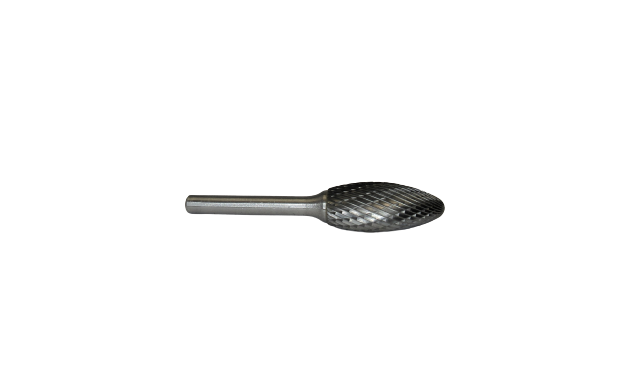

Eagle Cutting Tool CB-SH-1-D Flame Shape Carbide Burr

Product Description

The EAGLE CUTTING TOOL CB-SH-1-D is a flame-shaped carbide burr designed for material removal, deburring, shaping, and surface finishing in metalworking and fabrication applications. This burr features both single cut and double cut geometry, giving technicians and tradespeople the flexibility to match cut aggressiveness to the material and finish requirement. With a 0.25 inch shank, it fits standard die grinders and rotary tools commonly found in HVAC, plumbing, and general fabrication shops. At 0.13 pounds, it is a lightweight tool suited for extended use without fatigue.

The CB-SH-1-D is used in applications where a flame or tapered-point profile is needed to reach into contoured areas, port work, or confined material surfaces. It is suited for use on steel, cast iron, aluminum, and similar metals in both residential and light commercial trade settings. Typical users include pipefitters, HVAC fabricators, welders, and maintenance technicians who need precise material removal in tight or curved geometries. The flame shape allows access to areas where flat or cylindrical burrs cannot reach effectively.

Key Features

• Flame shape profile for contouring, porting, and access to recessed surfaces
• Single cut and double cut geometry in one tool for variable material removal rates
• 0.25 inch shank diameter for compatibility with standard die grinders and rotary tools
• Carbide construction for hardness and extended cutting life on ferrous and non-ferrous metals
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with standard 0.25 inch collet die grinders and rotary tools commonly used in metalworking, fabrication, and trade service applications.

Installation Notes

This burr is installed by a qualified tradesperson or machinist using a die grinder with the correct collet size. Always power down and disconnect the tool before changing burrs. Secure the shank fully into the collet to the recommended depth before operating. Wear appropriate eye and face protection when operating rotary cutting tools, and follow applicable shop safety standards.

Technical Specifications

• Shank Diameter: 0.25 inches
• Shape: Flame
• Cut Type: Single Cut and Double Cut
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SH-1-D
