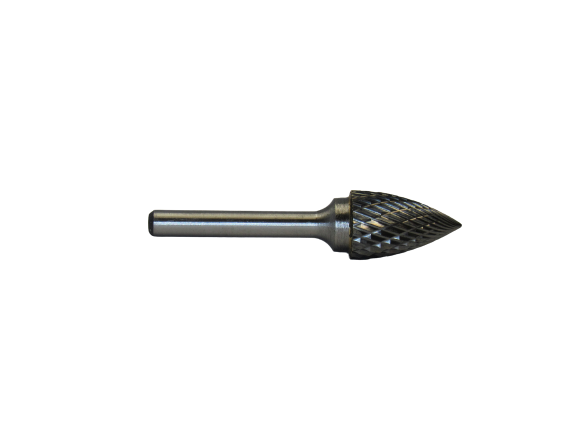

Eagle Cutting Tool CB-SG-5-L6-D Pointed Tree Carbide Burr

Product Description

The EAGLE CUTTING TOOL CB-SG-5-L6-D is a pointed tree profile double cut carbide burr designed for aggressive material removal in metalworking, fabrication, and industrial grinding applications. The SG-5 geometry features a tapered pointed tip that allows access into tight contours, grooves, and angled surfaces. Double cut fluting generates a finer finish pass compared to single cut and reduces vibration during use. This burr is built for use with air-powered die grinders and is a standard tool for machinists, pipefitters, welders, and fabricators working on ferrous and non-ferrous metals, hardened steel, and cast iron.

This burr suits production and maintenance environments where precision profiling, deburring, and weld blending are routine tasks. The 1/2 inch cut diameter and 6 inch overall length make it well suited for reaching into deep cavities or working at extended reach without a riser. Typical applications include port matching, chamfering, and removing flash from castings or weld beads in both shop and field settings.

Key Features

• Pointed tree (SG) profile for access into contours, angles, and tight recesses
• Double cut fluting for faster stock removal and reduced chatter
• Solid carbide construction for long service life on hardened materials
• 1/2 inch cut diameter suits standard die grinder collets
• 6 inch shank length provides extended reach in deep or confined work areas

Compatibility

Designed for use with standard 1/2 inch collet die grinders. Fits rotary tool setups accepting the SG-5 pointed tree carbide burr profile in industrial and maintenance grinding applications.

Installation Notes

Carbide burrs are installed and removed by a licensed machinist or qualified fabricator using a properly rated die grinder with a matching collet size. Always secure the shank fully in the collet before operating and confirm the grinder RPM rating meets or exceeds the burr manufacturer recommendation. Wear appropriate eye protection and gloves during use. Never exceed the rated RPM of the tool or the burr.

Technical Specifications

• Profile: Pointed Tree (SG-5)
• Cut Type: Double Cut
• Cut Diameter: 1/2 inch
• Shank Length: 6 inches
• Construction: Solid Carbide
• Weight: 0.12 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SG-5-L6-D
