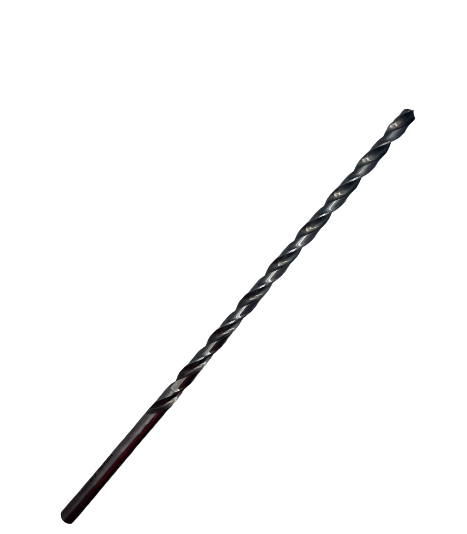

Eagle Cutting Tool 1212XL-014-I Hss Longboy Drill Bit

Product Description

The EAGLE CUTTING TOOL 1212XL-014-I is a high-speed steel (HSS) extra-long drill bit designed for deep-hole drilling applications where standard-length bits cannot reach. With a 7/32-inch diameter and a 12-inch overall length (OAL), this longboy-style bit gives tradespeople the reach needed to bore through thick assemblies, deep structural members, or stacked materials in a single pass. HSS construction provides the hardness and heat resistance required for drilling steel, cast iron, wood, and most non-ferrous metals. It is suited for use in stationary drill presses as well as heavy-duty handheld drill drivers.

This bit is a practical choice for HVAC, plumbing, electrical, and general construction trades where routing lines or fasteners through deep cavities or framing is a routine task. The extended 12-inch OAL makes it especially useful for drilling through double top plates, thick composite panels, or any assembly that exceeds the reach of a jobber-length drill. It weighs 0.24 pounds, keeping it manageable during overhead or confined-space work.

Key Features

• 7/32-inch diameter for precise, consistent bore sizing
• 12-inch overall length enables deep-reach drilling in a single pass
• High-speed steel (HSS) construction resists heat buildup during extended drilling
• Compatible with standard drill chucks on corded, cordless, and press-type drills
• Lightweight at 0.24 pounds for reduced fatigue during overhead or awkward-angle use

Compatibility

Designed as an OEM-style replacement or direct-use longboy drill bit compatible with standard 3-jaw drill chucks accepting 7/32-inch round shanks on corded and cordless drills and drill presses.

Installation Notes

Install and remove drill bits only when the drill or press is fully powered off and the chuck has stopped rotating. Secure the bit firmly in the chuck using the chuck key before operation, and verify there is no runout before drilling into the workpiece. For deep-hole drilling, withdraw the bit periodically to clear chips and prevent heat buildup. Eye protection and appropriate workholding fixtures are required per standard shop safety practice.

Technical Specifications

• Diameter: 7/32 inches
• Flute Length: 9 inches
• Overall Length (OAL): 12 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.24 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1212XL-014-I
