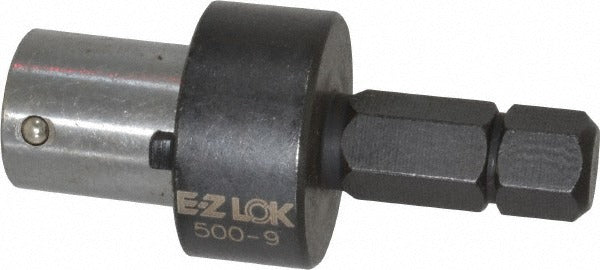

E-z Lok 500-9 Thread Insert Hand Tool 3/4-10 3/4-16

Product Description

The E-Z LOK 500-9 is a hand installation tool designed for driving threaded inserts into pre-tapped holes without power tools. Built from steel, this insert tool provides the control and torque needed to seat inserts flush and square in a wide range of base materials. It is sized to handle both 3/4-10 and 3/4-16 thread specifications, making it a practical addition to any technician's hand tool set. Machinists, maintenance mechanics, and field service technicians use this type of tool when installing helical or solid-wall thread inserts where precision hand control is preferred over powered installation.

This tool is suited for repair and fabrication work in both shop and field environments. Common applications include restoring damaged threads in metal assemblies, installing inserts in cast housings, and reinforcing thread engagement in high-load fastener locations. The 3/4-10 coarse thread and 3/4-16 fine thread coverage addresses two of the most frequently encountered large-diameter fastener sizes in mechanical and industrial maintenance work.

Key Features

• Handles both 3/4-10 coarse and 3/4-16 fine thread inserts from a single tool
• Steel construction for durability under repeated use
• Hand-drive design allows controlled insert seating without power equipment
• Compact and lightweight at 0.2 pounds for easy portability
• Single-piece tool requires no assembly before use

Compatibility

Designed for use with E-Z LOK threaded inserts in 3/4-10 and 3/4-16 thread sizes. Consult the specific insert product line to confirm tool compatibility before installation.

Installation Notes

Installation of threaded inserts should be performed by a qualified machinist or maintenance technician familiar with thread repair procedures. Ensure the receiving hole is tapped to the correct thread specification and is free of debris before driving the insert. Apply steady, even hand pressure to seat the insert without cross-threading or over-driving. Follow the insert manufacturer's instructions for proper installation depth and break-off tang removal where applicable.
