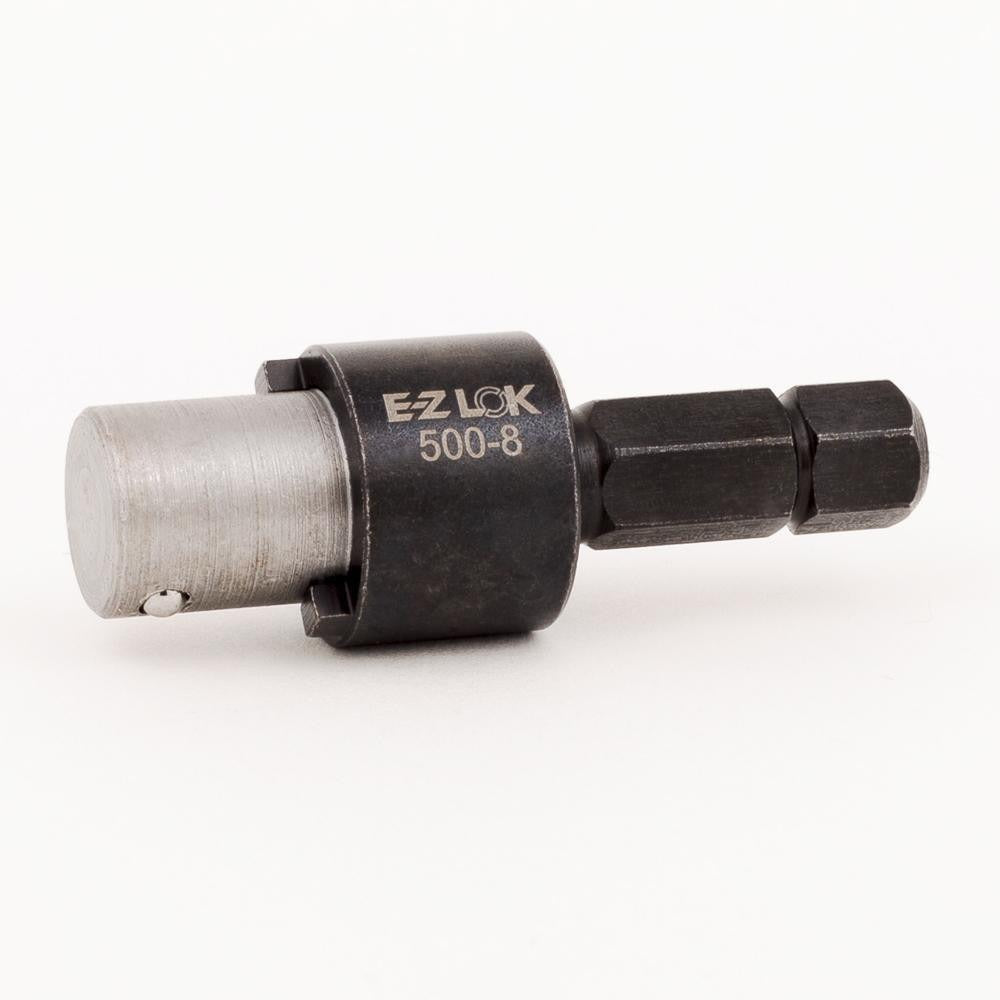

E-z Lok 500-8 Thread Insert Hand Installation Tool

Product Description

The E-Z LOK 500-8 is a hand installation tool designed to drive threaded inserts into pre-tapped holes without power tools. It accepts inserts in multiple thread standards, covering 5/8-11 and 5/8-18 UNS sizes as well as M16 x 2.00 metric. The tool body is constructed from steel for durability under repeated use. Machinists, maintenance technicians, and assembly professionals use this tool wherever threaded inserts need to be seated accurately by hand in metal, plastic, or composite workpieces.

This tool is suited for both production and repair applications where thread inserts must be installed with controlled hand torque. It fits into bench work, field repair, and light manufacturing scenarios. The ability to handle both UNS and metric thread standards in a single tool makes it practical in shops that work with mixed-fastener assemblies. It is a low-complexity, direct-drive tool requiring no setup beyond selecting the correct insert.

Key Features

• Accepts 5/8-11 and 5/8-18 UNS thread inserts
• Accepts M16 x 2.00 metric thread inserts
• Steel construction for durability under repeated hand torque
• Hand-operated design eliminates need for power tools during insert installation
• Single tool covers both UNS and metric thread standards

Compatibility

Designed for use with threaded inserts in 5/8-11, 5/8-18, and M16 x 2.00 thread sizes. Suitable for use with E-Z LOK threaded insert products in the corresponding UNS and metric thread standards.

Installation Notes

Installation is performed by hand and requires no power tools or special equipment. Ensure the receiving hole is pre-tapped to the correct thread specification before driving the insert. Apply steady, even torque to seat the insert flush or to the specified depth. Follow the insert manufacturer's guidelines for hole preparation and seating depth.
