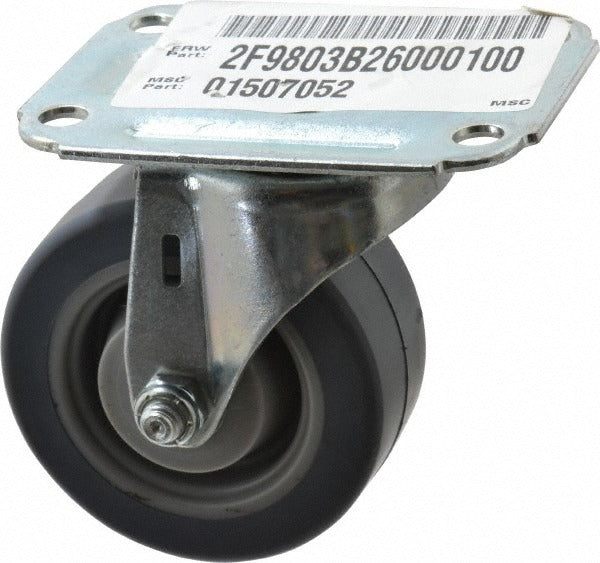

E.r. Wagner 2F9803B26000100 Swivel Top Plate Caster 125 Lb

Product Description

The E.R. WAGNER 2F9803B26000100 is a swivel top plate caster designed for use on hard surfaces in light- to medium-duty material handling applications. It features a 3-inch diameter thermoplastic rubber wheel molded onto a polypropylene hub, delivering smooth, quiet rolling on concrete, tile, and sealed floors without marking surfaces. The wheel is 1-1/4 inches wide and the unit carries a 125 lb load capacity. The swivel assembly uses a double-row construction with a Delrin bearing, and the zinc-finished steel hardware is hardened and heat treated for corrosion resistance. Overall height is 3-3/4 inches, keeping equipment close to the floor while maintaining clearance.

This caster is suited for carts, workbenches, equipment stands, and light industrial or commercial furniture operating on hard floor surfaces. The top plate mount makes it a straightforward bolt-on installation for standard plate-mount frames and fabricated steel bases. It is a common replacement or upgrade choice wherever a 3-inch TPR swivel caster with a plate mount is specified. The gray wheel color and zinc finish are appropriate for clean environments including food-adjacent and light commercial settings where corrosion resistance is a consideration.

Key Features

• Thermoplastic rubber wheel molded on polypropylene hub for non-marking, quiet rolling on hard floors
• Double-row swivel construction with Delrin bearing for smooth directional movement
• Zinc-finished, hardened and heat-treated hardware for corrosion resistance
• Top plate mount with 2-3/4 inch by 3-3/4 inch plate for standard bolt-on installation
• 125 lb load capacity suitable for light- to medium-duty equipment and carts
• Compact 3-3/4 inch overall height keeps mounted equipment low to the floor

Compatibility

Designed as an OEM-style replacement or new-installation swivel caster for equipment frames and carts that use a top plate mount and accept a 3-inch wheel caster rated to 125 lb on hard surface applications.

Installation Notes

Installation is performed by bolting the top plate directly to the equipment frame using fasteners through the plate holes, which accept 0.344-inch bolt hole diameter hardware. Power down or fully unload any equipment before mounting or replacing casters to prevent movement during service. Ensure the mounting surface is flat and that all four fastener positions are secured evenly to avoid rocking. Verify that the total combined caster load rating meets or exceeds the loaded weight of the equipment before returning it to service.
