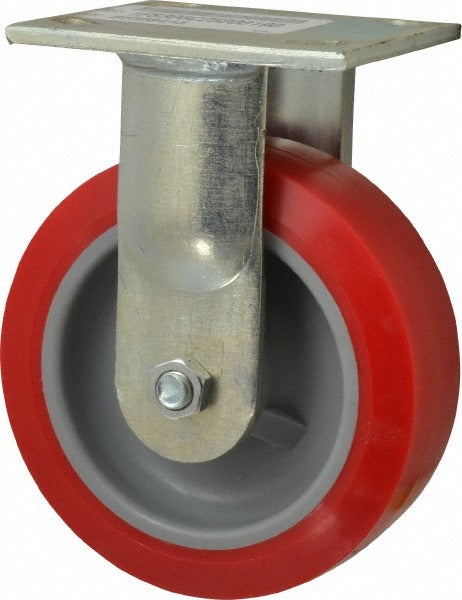

E.r. Wagner 1F8306C25000190 Rigid Top Plate Caster 900 Lb

Product Description

The E.R. WAGNER 1F8306C25000190 is a rigid top plate caster designed for heavy-duty institutional and industrial material handling applications. It features a 6-inch diameter polyurethane wheel molded onto a polypropylene core, with a 2-inch wheel width rated for up to 900 pounds load capacity. The stamp-formed construction with zinc finish provides corrosion resistance in demanding environments. With an overall height of 7.5 inches, this caster is sized for standard cart, rack, and equipment frame applications. Roller bearings support smooth, consistent rolling under sustained load. Licensed trades and maintenance professionals install this caster type on carts, dollies, industrial racks, and institutional equipment frames.

This caster is suited for institutional and industrial settings where a non-swivel, directional wheel is required. The rigid style keeps equipment tracking in a straight line, making it appropriate for use on one end of a cart paired with swivel casters at the opposite end. The polyurethane wheel provides a balance of floor protection and load-bearing durability, performing well on concrete, tile, and sealed surfaces common in warehouses, hospitals, schools, and manufacturing facilities. The top plate mount attaches directly to the underside of equipment frames using standard hardware through the mounting holes in the 4.625-inch by 4-inch plate.

Key Features

• Rigid mount style keeps directional tracking consistent under load
• Polyurethane wheel molded on polypropylene core resists corrosion and floor marking
• Double-row swivel construction with roller bearings for smooth load handling
• Stamp-formed zinc-coated frame provides corrosion resistance in institutional and industrial environments
• Top plate mount at 4.625 inches by 4 inches suits standard equipment frame bolt patterns
• 900 lb load capacity supports heavy carts, racks, and industrial equipment

Compatibility

Designed as an OEM-style rigid top plate caster replacement for institutional and industrial carts, racks, dollies, and equipment frames requiring a 6-inch polyurethane wheel with a top plate mount.

Installation Notes

Installation is performed by maintenance technicians or equipment fabricators using standard hand tools. The equipment or cart must be fully unloaded and stabilized before removing or replacing casters. Fasten the top plate securely through all mounting holes using hardware appropriate for the frame material and load rating. Verify that all four casters on a cart are rated at or above the total load before returning equipment to service.
