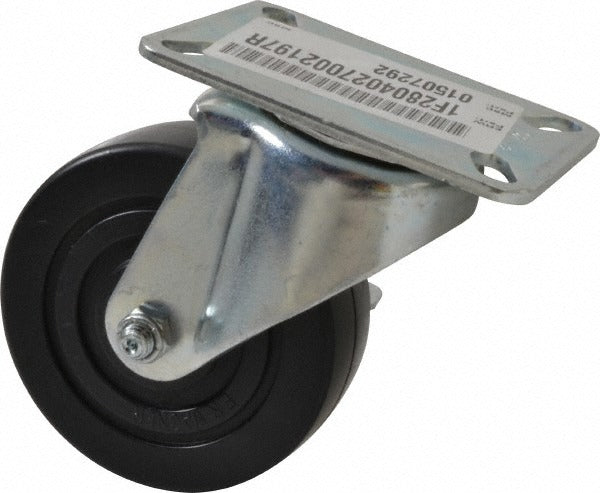

E.r. Wagner 1F2804027002197 Swivel Caster 300 Lb 4 in

Product Description

The E.R. WAGNER 1F2804027002197 is a swivel top plate caster built for use on carpeted surfaces and light-to-medium duty material handling applications. It mounts via a top plate and swivels freely to allow multidirectional movement. The wheel is made of polyolefin and measures 4 inches in diameter with a 1-3/8 inch width. A side brake locks the caster in place when stationary positioning is needed. The plate and wheel assembly uses a zinc finish over hardened, heat-treated construction. Overall assembly height is 5-1/16 inches. Rated for a load capacity of 300 pounds, this caster is suited for carts, equipment stands, and similar rolling assemblies installed by maintenance professionals or tradespeople.

This caster is designed specifically for carpeted surfaces, making it a common choice for office equipment carts, utility carts, and light industrial rolling platforms deployed in facilities where hard-floor casters would catch or drag. The top plate mount measures 4.125 inches in length by 3.125 inches in width, fitting standard bolt-hole patterns used in commercial and light industrial caster applications. The plain bearing and polyolefin wheel keep rolling resistance low on carpet pile without damaging the surface.

Key Features

• Swivel mount allows full 360-degree rotation for multidirectional movement
• Polyolefin wheel rated for carpeted surfaces - resists snagging and surface damage
• Side brake locks the caster for stationary positioning
• Hardened, heat-treated construction with zinc finish for corrosion resistance
• Top plate mount with 4.125 x 3.125 inch plate size for secure fastening
• 300 lb load capacity per caster

Compatibility

Designed as an OEM-style replacement or new-install swivel top plate caster for carts, stands, and rolling equipment requiring a 4-inch polyolefin wheel with side brake on a standard top plate mount pattern.

Installation Notes

Installation is performed by securing the top plate to the equipment frame using bolts through the plate mounting holes - verify bolt size and hole pattern match the equipment before installation. Ensure the mounting surface is flat and structurally adequate for the rated load. Distribute load evenly across all casters in the assembly to avoid exceeding the per-caster capacity. Test the side brake function and swivel action before putting the equipment into service.
