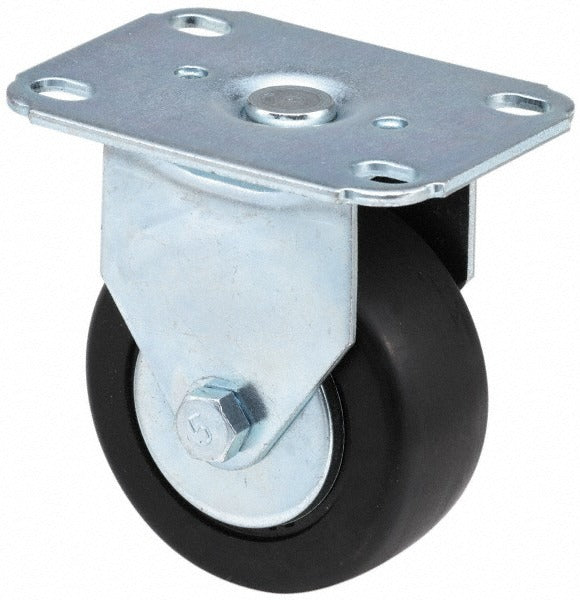

E.r. Wagner 1F2305004001197 Rigid Top Plate Caster 240 Lb

Product Description

The E.R. WAGNER 1F2305004001197 is a rigid top plate caster designed for light-duty material handling applications. It uses a 5-inch soft rubber wheel that is 1.375 inches wide, providing a smooth, floor-friendly roll on hard or semi-hard surfaces. The rigid mount means no swivel - directional control is fixed, making it suitable for straight-line load movement. The overall assembled height is 6.0625 inches, and the top plate measures 4.125 inches long by 3.125 inches wide. Load capacity is rated at 240 pounds. The zinc-finished steel plate and hardened, heat-treated construction offer durability appropriate for regular shop or facility use. Licensed tradespeople and facility maintenance crews are the typical installers.

This caster fits light-duty carts, workbenches, equipment stands, and similar applications where a fixed rolling direction is acceptable. The soft rubber wheel material makes it well suited for use on concrete, tile, or wood flooring where floor protection and noise reduction matter. The Delrin bearing type provides low-friction rotation without requiring lubrication. The top plate mount pattern accommodates standard bolt-hole layouts common on light commercial and industrial frames.

Key Features

• 5-inch soft rubber wheel for quiet, floor-protective rolling
• 240 lb load capacity suitable for light-duty equipment and carts
• Rigid mount style for fixed directional travel
• Delrin bearing - maintenance-free, no lubrication required
• Zinc-finished plate for corrosion resistance
• Hardened and heat-treated construction for extended service life

Compatibility

Designed as an OEM-style replacement or direct-mount rigid caster for light-duty carts, stands, and equipment frames accepting a 3.125 inch by 4.125 inch top plate.

Installation Notes

Installation is typically performed by maintenance technicians or equipment assemblers using standard hand tools. Confirm the mounting frame bolt pattern matches the 3.125 inch by 4.125 inch plate dimensions before installation. Power down or safely lock out any powered equipment before replacing casters on mobile machinery. Ensure all mounting fasteners are fully tightened and that the rated 240 lb load capacity is not exceeded in service.
