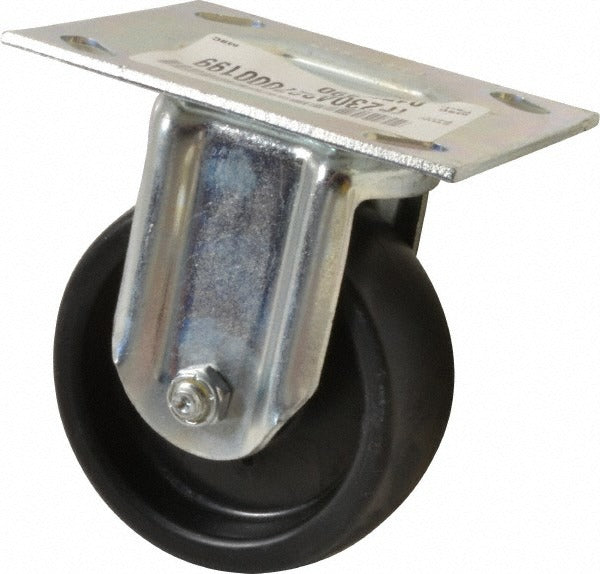

E.r. Wagner 1F2304327000199 Rigid Top Plate Caster 300 Lb

Product Description

The E.R. WAGNER 1F2304327000199 is a rigid top plate caster built for use on carpeted surfaces in industrial and commercial material handling applications. It uses a 4-inch diameter polyolefin wheel, 1-3/8 inches wide, with a roller bearing for smooth, consistent rolling under load. The zinc-finished steel hardware is hardened and heat treated for durability. Rated at 300 lb load capacity and standing 5-1/16 inches overall height, this caster is sized for equipment dollies, carts, and shelving units where a fixed-direction wheel is required. Installation is handled by maintenance technicians or equipment assemblers using standard hand tools.

This caster is designed for carpeted surface applications where polyolefin wheels provide reliable roll without damaging floor coverings. The rigid style means the wheel does not swivel, making it appropriate for trailing or fixed-direction positions on multi-caster equipment. The top plate mount - 4-5/8 inches by 3-3/4 inches - attaches directly to the underside of carts, racks, or equipment frames with standard fasteners. It is well suited for light industrial, commercial, and institutional settings where load ratings up to 300 lb per caster are required.

Key Features

• Rigid (non-swivel) top plate mount for fixed-direction wheel positioning
• 4-inch polyolefin wheel rated for carpeted surface use
• Roller bearing construction for low-friction rolling under load
• Hardened, heat-treated hardware with zinc finish for corrosion resistance
• 300 lb load capacity per caster
• Top plate size of 4-5/8 inches by 3-3/4 inches for broad mounting compatibility

Compatibility

Designed as a top plate-mount rigid caster for carts, dollies, racks, and equipment frames used on carpeted surfaces where a 300 lb per-caster load rating and 4-inch wheel diameter are appropriate.

Installation Notes

Install using fasteners appropriate for the mounting surface material and rated for the intended load. Ensure the mounting plate is flush and secure before placing equipment in service. De-energize or fully unload any powered or loaded equipment before replacing casters. Follow applicable facility safety guidelines for load ratings and floor surface compatibility.
