E. James 5L950 - Gates 3950 Truflex Belt

Product Description

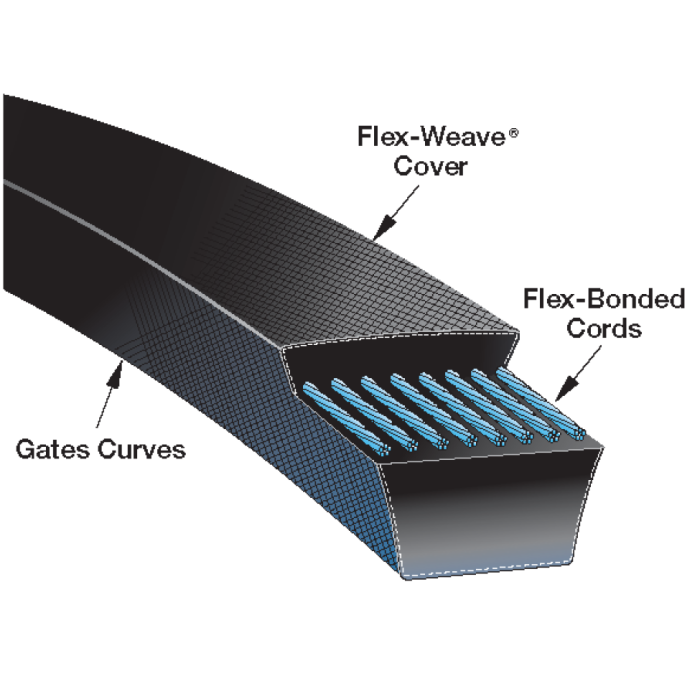

The E. James 5L950 is a Gates 3950 Truflex belt suitable for industrial and light-duty use. It works well with fractional horsepower motors and operates effectively with backside idlers. The belt includes flex-bonded cords that help distribute load and absorb bending stress. Gates Curves technology promotes cord support and ensures proper sheave-groove contact, resulting in consistent loading and wear. The Flex-Weave cover provides essential protection from oil, dirt, and heat. This belt adheres to RMA standards for oil and heat resistance along with static conductivity requirements. Its design features a thin profile ideal for small-diameter sheaves, and it has a lower cord positioning for improved performance on light-duty and backside idler belt drives. The belt has an outside length of ninety-five inches, a top width of zero point sixty-six inches, and a nominal thickness of zero point three seven five inches.

• Offers length stability, minimizing take-up requirements.
• Features a Flex-Weave cover for protection against oil, dirt, and heat.
• Complies with RMA oil and heat-resistant standards and static conductivity requirements.

Product Highlights

Product Information

Standard Information

• Manufacturer: Gates
• Industry Number: 5L950

Technical Specifications

• Gates Product Number: 8400-3950
• Outside Length: 95 inches
• Effective Length: 94.93 inches
• Top Belt Width per Strand: 0.66 inches
• Nominal Thickness: 0.375 inches
• Weight: 0.8
