E. JAMES 5L290 V-Belt

Product Description

The E. JAMES 5L290 V-Belt is suitable for industrial and light-duty applications. It works well with fractional horsepower motors and backside idlers.

• Maintains length stability to reduce take-up needs.
• Offers resistance to oil, dirt, and heat with its Flex-Weave Cover.
• Compliant with RMA/ARPM oil and heat-resistant standards and static conductivity requirements.

Product Highlights

This V-belt features flex-bonded cords that evenly distribute load and absorb bending stress. Gates Curves provide optimum cord support and ensure full sheave-groove contact. The Flex-Weave Cover protects against environmental factors while meeting industry standards. Its thin profile is designed for small-diameter sheaves, allowing for smooth operation.

Product Information

Standard Information

• Brand: E. JAMES
• Model: 5L290

Technical Specifications

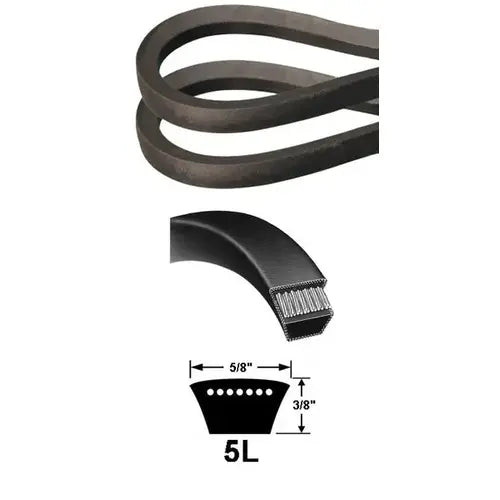

• Cross Section: 5L
• Top Width: 21/32 inches
• Thickness: 3/8 inches
• Outside Circumference: 29.00 inches
• Material: EPDM
• Max Temperature: 140 °F
• Min Temperature: -22 °F
• Minimum Pulley Diameter: 4.775 inches
