E-flex la012-22101 Liquidtight Conduit 3/4 in 100 Ft Gray

Product Description

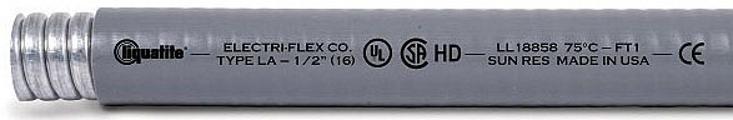

The E-FLEX la012-22101 is a flexible liquidtight metallic conduit rated for heavy-duty electrical installations in wet, oily, and hazardous environments. Built on a square-lock steel core with a hot-dip galvanized finish and a gray PVC jacket, this conduit delivers mechanical protection and moisture resistance in a single assembly. It carries UL 360 listing, CSA C22.2 certification, and CE approval, and conforms to ANSI 360 and ANSI/NFPA-70/79 standards. The trade size is 3/4 inch, with an inner diameter of 0.82 to 0.84 inches and an outer diameter of 1.03 to 1.05 inches. Licensed electricians install this conduit in commercial and industrial settings where standard rigid or flexible metallic conduit is not adequate for the environment.

This conduit is suited for industrial facilities, marinas, boatyards, and hazardous locations. Its Class I Division 2, Class II Division 1, and Class III Division 1 enclosure ratings make it appropriate for areas with flammable gases, combustible dusts, or ignitable fibers. The PVC jacket is both sunlight resistant and flame retardant, supporting exposed or concealed installations. Temperature ratings are -30 to 80 degrees C in dry conditions, 60 degrees C in wet conditions, and 70 degrees C in oil environments. Each carton contains 100 feet of conduit.

Key Features

• Square-lock construction with hot-dip galvanized steel core for mechanical rigidity and corrosion resistance
• Gray PVC jacket rated sunlight resistant and flame retardant
• UL 360 listed and CSA C22.2 certified for use in wet, oily, and hazardous locations
• Rated Class I Div 2, Class II Div 1, and Class III Div 1 for hazardous location use
• Static bending radius of 4.2 inches and dynamic bending radius of 6 inches
• RoHS compliant and manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation liquidtight flexible metallic conduit for 3/4 inch trade size applications in industrial, marine, and hazardous-location electrical systems conforming to ANSI/NFPA-70 and NFPA-79 requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC (ANSI/NFPA-70) and any applicable local codes. De-energize all circuits before cutting, fitting, or connecting the conduit. Use fittings rated for liquidtight flexible metallic conduit at each termination point to maintain the environmental protection rating. Maintain bending radii at or above the specified static and dynamic minimums to avoid damage to the jacket or core.

Technical Specifications

• Trade Size: 3/4 inch
• Inner Diameter: 0.82 to 0.84 inches
• Outer Diameter: 1.03 to 1.05 inches
• Length: 100 feet per carton
• Weight: 53 pounds per 100 feet
• Core Material: Steel, hot-dip galvanized finish
• Jacket Material: PVC
• Jacket Color: Gray
• Bending Radius (Static): 4.2 inches
• Bending Radius (Dynamic): 6 inches
• Temperature Rating: -30 to 80 degrees C (dry), 60 degrees C (wet), 70 degrees C (oil)
• Enclosure Rating: Class I Div 2, Class II Div 1, Class III Div 1
• Certifications: UL 360, CSA C22.2, CE, ANSI 360, ANSI/NFPA-70/79
• Compliance: RoHS
• Country of Origin: USA

Standard Information

• Brand: E-FLEX
• Manufacturer Part Number: la012-22101
