DynaQuip Controls VNH3.AM1/8 Brass Mini Ball Valve 1/8 NPT x Female Pipe

Product Description

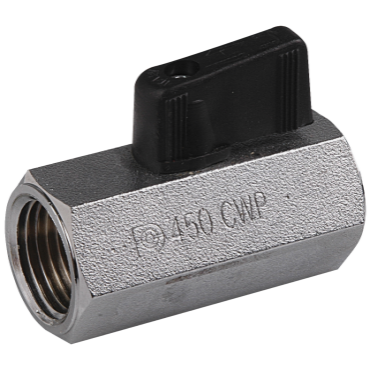

The DynaQuip Controls VNH3.AM1/8 is a brass mini ball valve designed for various applications, including air, water, gases, and liquids. This valve features a compact design made from chrome-plated brass, ensuring reliability and durability. It has a bottom-loaded stem with a Viton stem seal and PTFE seats, which enhances its leak-proof capabilities.

• Compact and space-saving design
• Two-way operation for increased versatility
• UL approved for refrigerant ball valves

Product Highlights

The DynaQuip Controls VNH3.AM1/8 is ideal for HVAC, plumbing, and other fluid control applications. Its black nylon wing handle allows for easy manual operation. The valve operates in both directions, making it suitable for various setups.

Product Information

Standard Information

• Brand: DynaQuip Controls
• MPN: VNH3.AM1/8

Technical Specifications

• Port Size: 1/8 NPT
• Thread Size: 1/8
• Pressure Max: 600 psi
• Temperature Range Max: 200 °F
• Temperature Range Min: -4 °F
• Body Material: Brass
• Connection Type: Female Thread to Female Thread
• Cv Flow: 4.5
