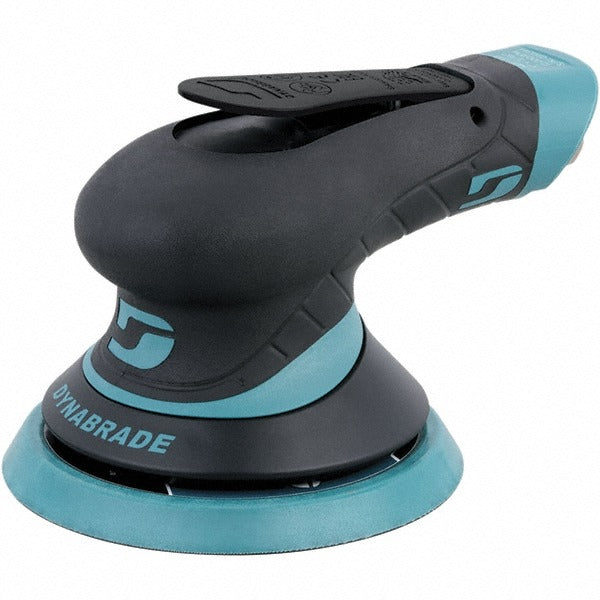

Dynabrade X52H 5 Inch Random Orbital Air Sander

Product Description

The DYNABRADE X52H is a pneumatic random orbital sander designed for surface finishing, sanding, and prep work across automotive, industrial, and woodworking applications. Powered by compressed air at 90 psi with an airflow requirement of 19 CFM, it runs at up to 12,000 OPM and delivers 0.3 horsepower through a 5-inch round hook-and-loop backing pad. The 3/32-inch orbit diameter keeps material removal controlled and produces a consistent swirl-free finish. A 1/4 NPT inlet connects to standard shop air lines, and the minimum hose size required is 0.25 inches. At 1.74 pounds, it reduces fatigue during extended use.

The X52H is suited for body shops, fabrication shops, cabinet shops, and general industrial finishing environments where a pneumatic random orbital tool is standard. It handles paint prep, primer sanding, and final-stage finishing on flat and low-contour surfaces. The 5-inch pad size is a common format compatible with widely available abrasive discs, making consumable sourcing straightforward on the job.

Key Features

• 12,000 OPM operating speed for efficient material removal and finishing
• 5-inch round hook-and-loop pad accepts standard 5-inch abrasive discs
• 3/32-inch orbit diameter for controlled, swirl-minimizing finish
• 90 psi operating pressure with 19 CFM air consumption
• 1/4 NPT inlet for compatibility with standard air fittings
• Lightweight at 1.74 pounds to reduce operator fatigue

Compatibility

Designed for use with standard 5-inch hook-and-loop random orbital abrasive discs. Requires a compressed air supply capable of delivering 19 CFM at 90 psi with a minimum 0.25-inch hose.

Installation Notes

Installation and operation should be performed by a qualified tradesperson familiar with pneumatic tool safety. Before connecting or disconnecting the tool, shut off the air supply and bleed the line. Verify the air supply meets the 90 psi and 19 CFM requirements before use, as undersupply will reduce tool performance. Follow applicable OSHA and facility safety guidelines for pneumatic tool operation, including use of appropriate eye and respiratory protection when sanding.
