Dwyer TRI-200-50 Temperature/Pressure Gauge, 0-200Psi

Product Description

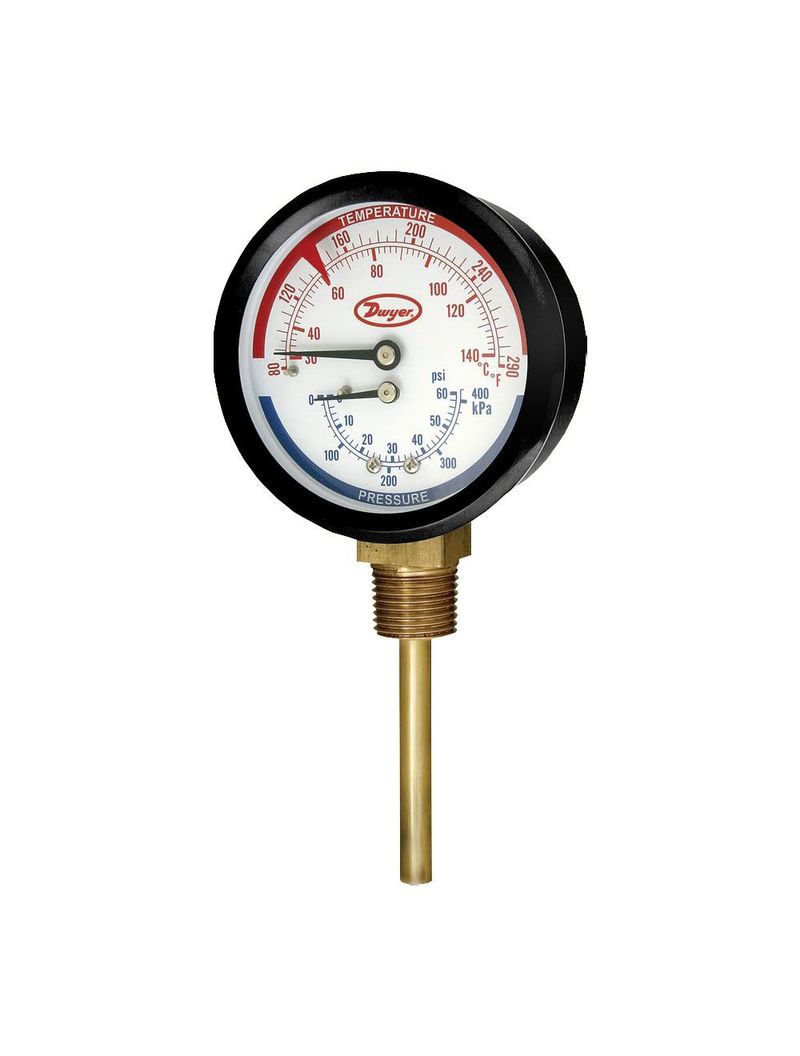

The Dwyer TRI-200-50 combines a pressure gauge and thermometer into one instrument. Its movable dial features blue pressure and red temperature markings for easy reading. Suitable for compatible gases and liquids, it features a brass connection, phosphor bronze Bourdon tube, and a durable drawn steel housing with a black finish.

• Combines the value of an individual pressure gage and thermometer in one instrument
• Simplify installation
• Boiler monitoring

Product Highlights

This tridicator gauge simplifies installation, reduces time, and saves money. It accurately measures pressure in both psi and kPa, and temperature in both Fahrenheit and Celsius.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: TRI-200-50

Technical Specifications

• Service: Compatible gases and liquids
• Wetted Materials: Brass connection and phosphor bronze Bourdon tube
• Housing: Drawn steel, black finish
• Accuracy: Pressure ±3-2-3% Temperature ±1 scale division
• Temperature Range: 80 to 290°F (30 to 140°C)
• Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C) Process: 80 to 290°F (30 to 140°C)
• Pressure Limits: Full scale range
• Size: 3" (76 mm)
• Process Connections: ½" male NPT back or bottom, ½" male NPT back connection
• Weight: 12.3 oz (348.7 g)
• (Instrument-Sensor) Application: Gas
• Component: Pressure Gauge
• (Instrument-Sensor) Type: Tridicator Gauge
• (Instrument-Sensor) Temperature Range: Process: 80 - 290°F/30 - 140°C
• (Instrument-Sensor) Measurement Accuracy: 3.0%
• Manufacturer: Dwyer Instruments
