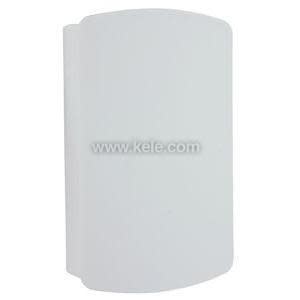

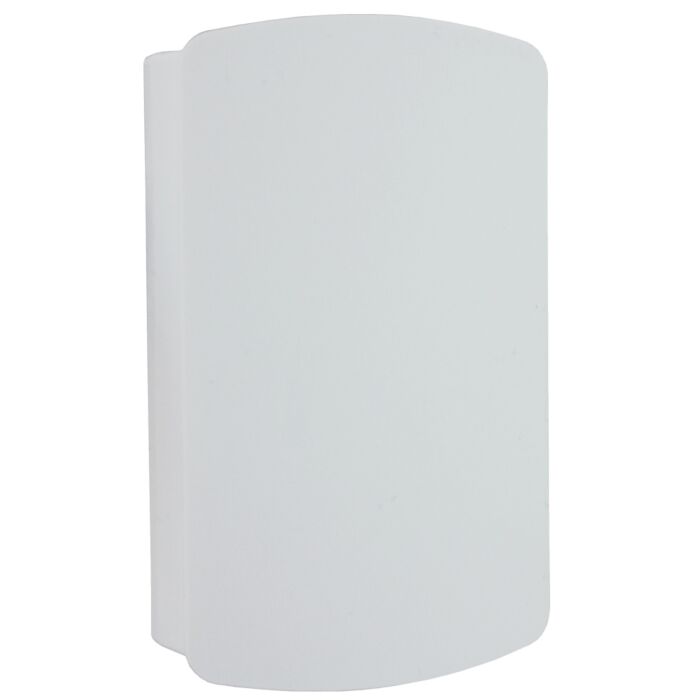

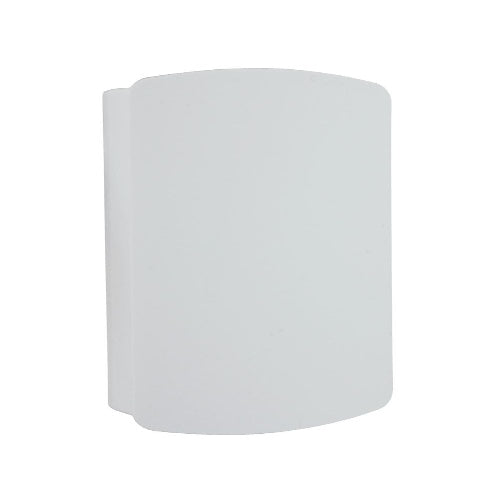

Dwyer TE-NND-D Wall Mount Temperature Sensor

Product Description

The Dwyer TE-NND-D is a wall mount temperature sensor designed to provide reliable temperature input for building management systems. This sensor utilizes a 100 Ohm Platinum RTD sensor element for precise temperature measurement. It is enclosed in a durable ABS plastic housing with ventilation to ensure proper airflow.

• Features a 100 Ohm Platinum RTD sensor for accurate temperature readings.
• ABS plastic housing is suited for various mounting surfaces.
• Ideal for measuring temperature in diverse environments including classrooms and offices.

Product Highlights

This temperature sensor is designed for accuracy and durability in various applications.

Product Information

Standard Information

• Type: RTD
• Housing Material: ABS plastic

Technical Specifications

• Sensor Element: 100 Ohm Platinum RTD 385
• Accuracy: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temp sensor: DIN class B; ±0.3°C @ 0°C (±1°F @ 32°F)
• Temperature Limits: -40 to 140°F (-40 to 60°C)
• Weight: 0.3 lb (136 g)
• Temperature Range: -40 - 140°F/-40 - 60°C
• Measurement Accuracy: 0.54°F
