Product Description

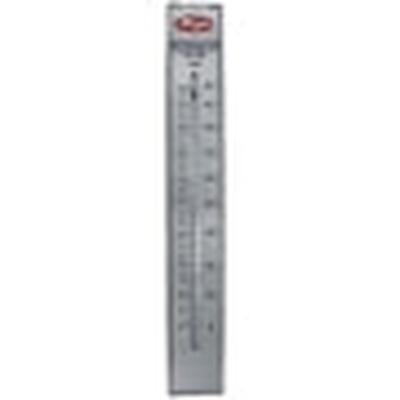

The Dwyer RMC141 Rate-Master flowmeter measures flow rates from 0.1 to 1 gallons per minute. This device is designed for both gas and liquid applications, featuring a polycarbonate housing. It is suitable for panel or surface mounting and allows for quick interchangeability between flowmeter bodies of the same scale size.
- Direct reading scales eliminate conversion needs
- Stainless steel design reduces installation damage
- Durable construction provides long operation life
Product Highlights
This flowmeter is built for accuracy and efficiency in various applications where precise flow measurement is necessary.
Product Information
Standard Information
-
Brand: Dwyer Instruments
-
MPN: RMC141
Technical Specifications
-
Series/Model: Model RMC
-
Connection Size: 1/2 IN FNPT
-
Flow Range: 0.1 - 1 GPM
-
Housing Material: Polycarbonate
-
Flow Material: Water
-
Wetted Materials: Neoprene, Buna-N O-Ring, Stainless Steel
-
Accuracy: 2% Of Full Scale
-
Pressure Rating: 100 PSI
-
Temperature Rating: 130 DEG F
-
Length: 15-3/8 IN
-
Width: 2-1/4 IN
-
Industry Standards: RoHS Compliant
-
Additional Specifications: 10 IN Scale
-
Weight: 39.000 OZ
