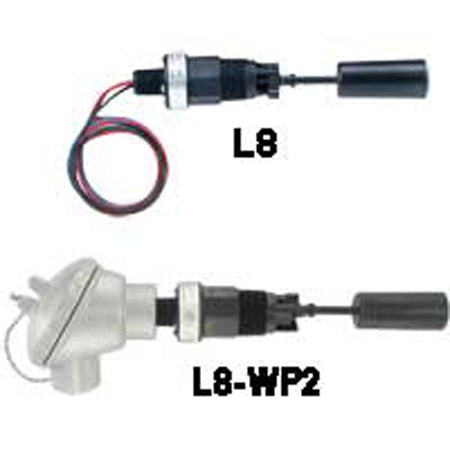

Dwyer L8-WP2 Flotect Liquid Level Switch

Product Description

The Dwyer L8-WP2 Flotect liquid level switch provides reliable liquid level monitoring. It features a polyphenylene sulfide body and float designed for chemical resistance. The magnetically actuated snap switch enhances lifespan and reduces maintenance needs. Suitable for applications requiring liquid level control, indication, or alarm, this switch is ideal for horizontal mounting. It is designed for liquids with a specific gravity of 0.6 or higher and is UL recognized as an industrial motor controller when installed in a protected environment.

• Features a single pole double throw (SPDT) snap switch.
• Can handle a pressure limit of 150 psig.
• Includes 1/2 male NPT conduit and 1 male NPT process connections.

Product Highlights

This level switch is compatible with various liquids, such as alcohols and oils. Its design enables it to function effectively across diverse industrial applications.

Product Information

Standard Information

• Brand: Dwyer Instruments, LLC
• Type: Float Level Switch

Technical Specifications

• Relay Type: SPDT
• Operating Pressure: 150 psig (10.34 bar)
• Specific Gravity: 0.6 minimum
• Media Compatibility: Alcohols, Compatible Liquids, Oils, Water
• Wetted Materials: 316 Stainless Steel, Ceramic, Inconel, PPS
• Enclosure Material: Polyphenylene Sulfide
• Operating Temperature: 212 °F (100 °C) maximum
• Mounting Orientation: Horizontal
