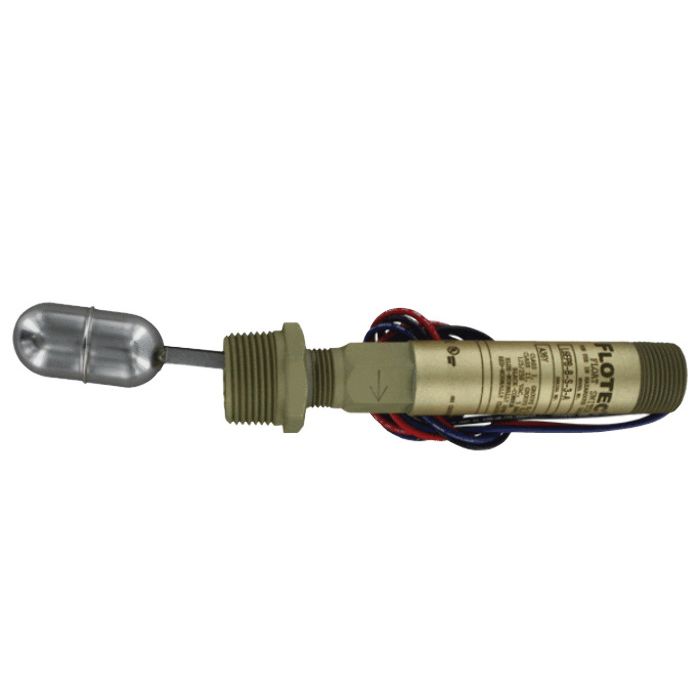

Dwyer L6EPB-B-S-3-A Flotect Liquid Level Switch

Product Description

The Dwyer L6EPB-B-S-3-A Flotect Liquid Level Switch is designed to monitor liquid levels in various applications. Constructed from stainless steel, this cylindrical float switch ensures reliable performance. It can withstand a maximum pressure of 200 psig and requires a minimum specific gravity of 0.5 for operation.

• Leak-proof body made from robust bar stock
• Compatible with side wall mounting or external float chamber configurations
• Suitable for outdoor use with weatherproof and explosion-proof features

Product Highlights

This switch operates with a float lever that pivots, adjusting based on liquid displacement to engage a magnet that controls the switch actuating lever. This allows for easy replacement of the electrical assembly without needing to shut down the process.

Product Information

Standard Information

• Brand: Dwyer
• Part Number: L6EPB-B-S-3-A

Technical Specifications

• Material: 304 Stainless Steel
• Max Pressure: 200 psig
• Min Specific Gravity: 0.5
• Mounting Type: Side Wall Mounting
• Operation Sensitivity: Less than 0.5 inches
• Design: Compact for longevity
