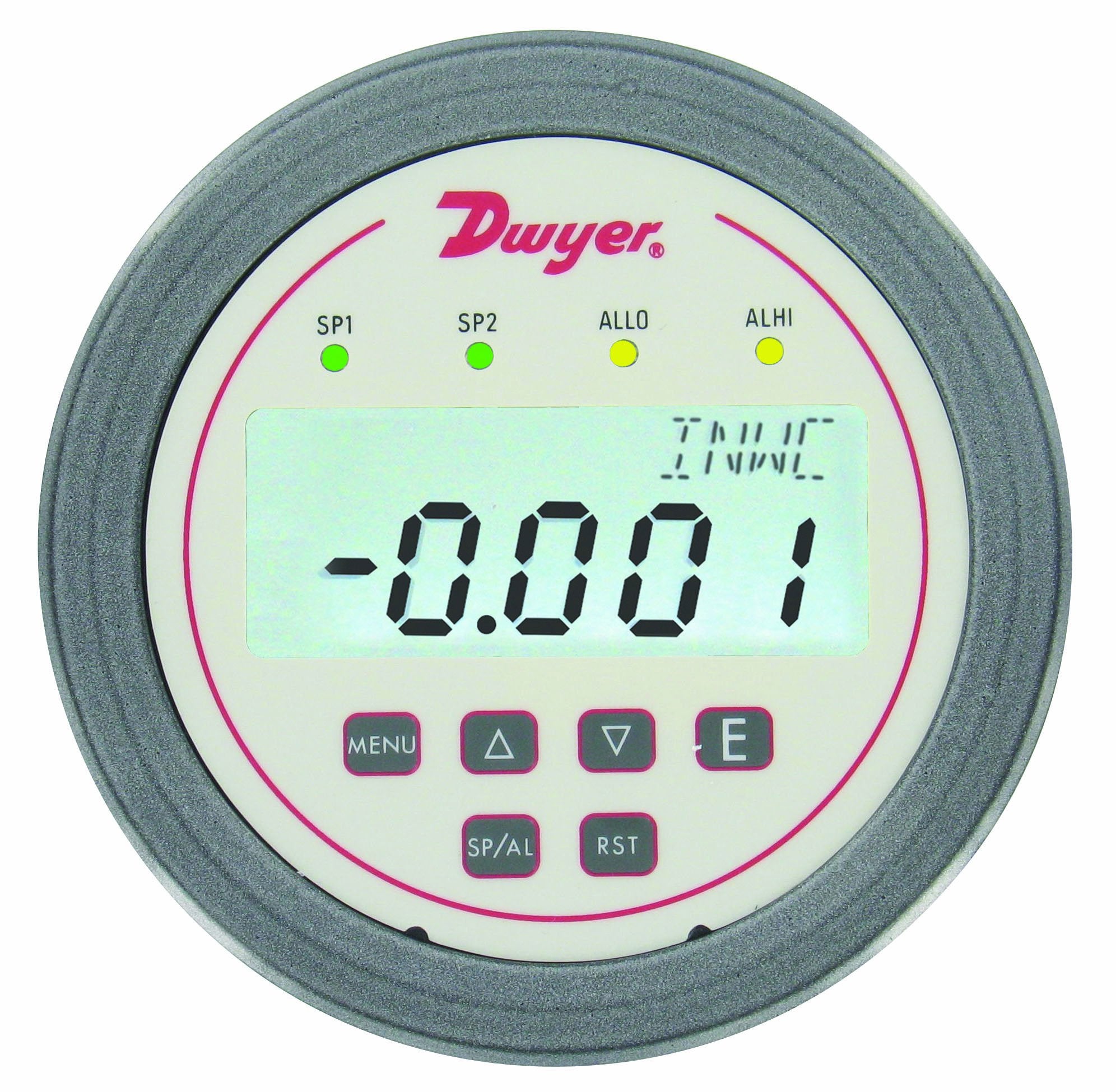

Dwyer DH3-017 Digihelic Differential Pressure Controller Bi-Directional Range 5-0-5 inches WC

Product Description

The Dwyer DH3-017 Digihelic Differential Pressure Controller integrates multiple functionalities including a digital display gauge, control relay switches, and a transmitter with a current output. This device is engineered to simplify setups by combining crucial measurements and controls into one unit, which is ideal for monitoring and regulating air pressure across varied settings.

• Accurate pressure measurements within a range of 0.25 inches WC to 2.5 inches WC and up to 5 inches WC.
• Durable die-cast aluminum casing ensures reliability and longevity.
• User-friendly interface with backlit LCD and adjustable settings directly via keypad.

Product Highlights

Optimized for ease and efficiency in installation, the DH3-017 provides a reduction in hardware through its multi-functional design. Precision engineering ensures reliable readings critical for maintaining system pressures within safe parameters.

Product Information

Standard Information

• Brand: Dwyer
• MPN: DH3-017
• Application: Pressure, velocity, and flow measurements in HVAC systems

Technical Specifications

• Material: Die-cast aluminum
• Display: 0.4 inch LCD, LED indicators
• Connection: 15 pin male high-density D-Sub, 18 inches cable
• Control: Adjustable via keypad, multiple set points
• Size: Bi-Directional Range 5-0-5 inches WC
• Weight: 2.41 lbs
• Dimensions: Height: 8.01 inches, Width: 8.01 inches, Length: 8.01 inches
