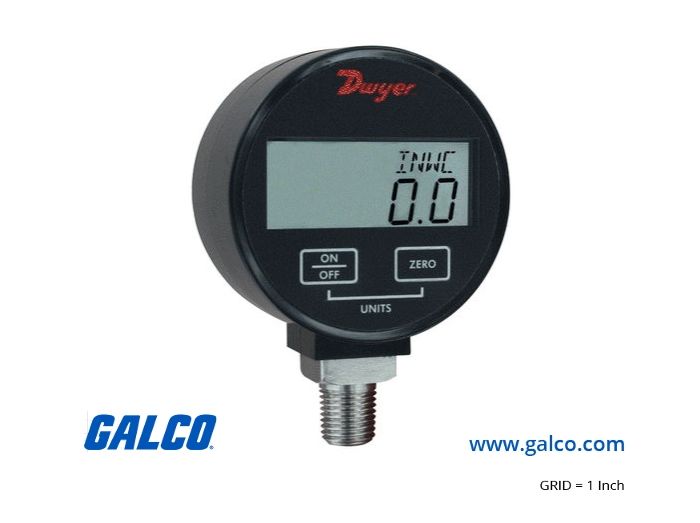

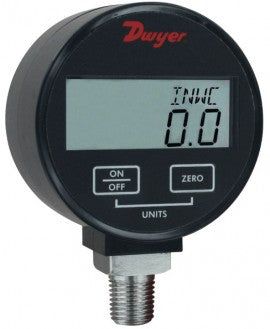

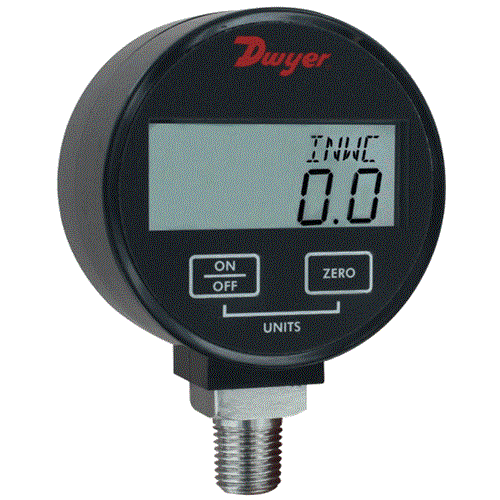

Dwyer DPGW-11 Digital Pressure Gauge

Product Description

The Dwyer DPGW-11 is a digital pressure gauge suited for measuring the pressure of various compatible liquids and gases. It offers selectable engineering units and a digital push-button zero function for easy operation. This gauge is made from durable materials, including 316L stainless steel for the wetted components and ABS plastic for the housing. The gauge features a quarter-inch male NPT process connection.

• Measures pressure from zero to five hundred psi.
• Features selectable engineering units.
• Made with 316L stainless steel wetted materials.

Product Highlights

The Dwyer DPGW-11 is essential for HVAC and plumbing professionals requiring accurate pressure readings. Its robust design allows it to function well in demanding environments.

Product Information

Standard Information

• Brand Name: Dwyer
• Manufacturer Part Number: DPGW-11

Technical Specifications

• Service: Compatible liquids and gases
• Range: 0 to 500 psi
• Wetted Materials: 316L stainless steel
• Housing Materials: ABS plastic
• Pressure Limits: Two times the pressure range
• Vacuum Range: Maximum pressure 30 psig
• Temperature Limits: from thirty to one hundred twenty degrees Fahrenheit
• Thermal Effect: 0.05% FS per degree Fahrenheit
• Process Connection: Quarter-inch male NPT
• Auto Shut-Off: 20 minutes
• Dimensions: 2.62 by 1.52 inches
• Weight: 5.6 ounces
• Net Weight: 0.35 lbs
• Case Size: 3.09 inches
• Case Material: ABS
• Country of Origin: United States
