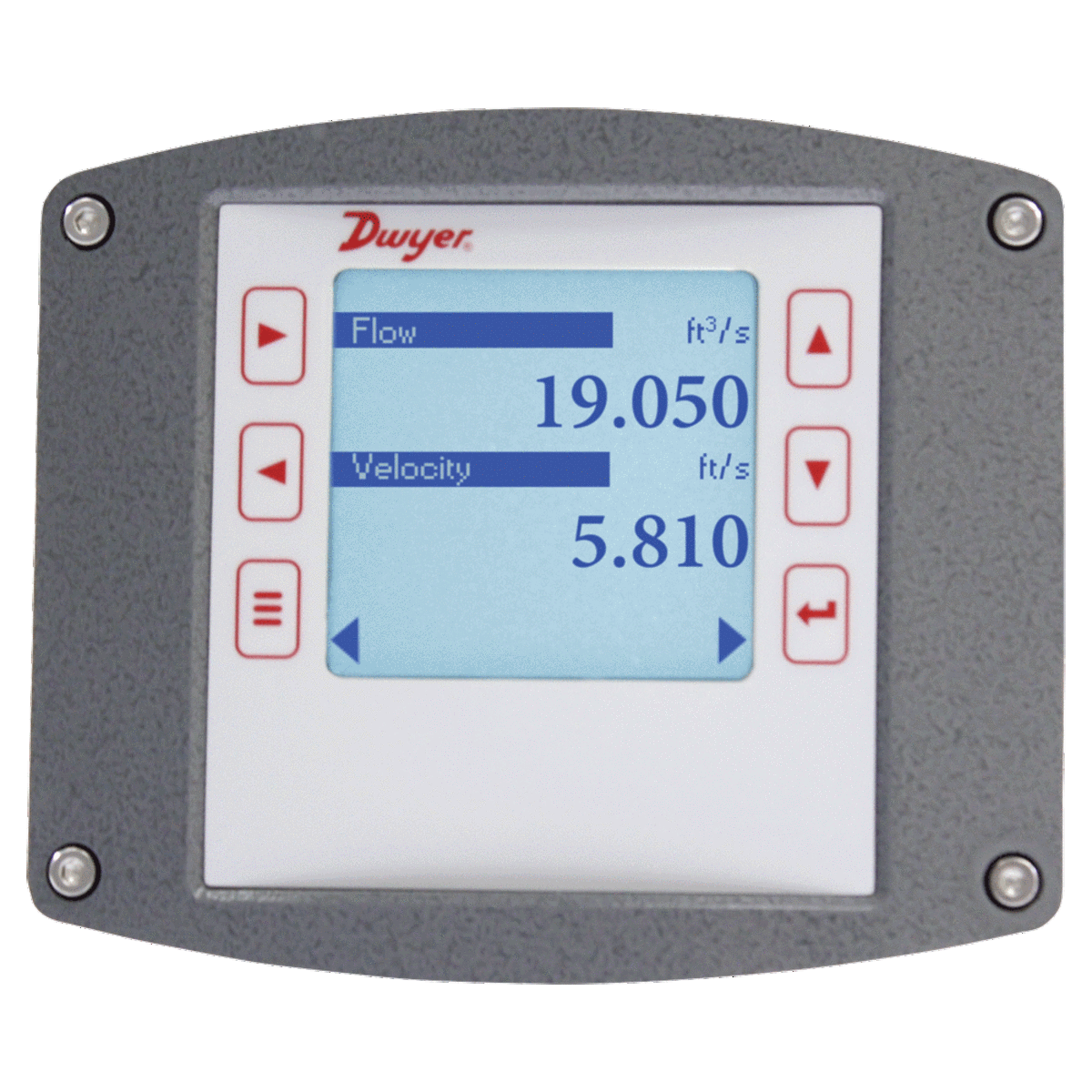

Dwyer A-IEF-DSP Setup Display for Field Configuring Non-Display Models

Product Description

The Dwyer A-IEF-DSP is a setup display designed for configuring non-display models of the Series IEF Insertion Electromagnetic Flow Transmitter. This display works with BACnet or Modbus protocols, providing greater adaptability for various applications.

• Flexible configuration options including integral or remote displays
• Maintains high accuracy through variations in temperature, density, and viscosity
• Simplified installation with setup wizard for quick use

Product Highlights

Utilize the A-IEF-DSP for precise and flexible configuration of flow measurement systems across different environments.

Product Information

Standard Information

• Type: BACnet MS/TP or Modbus RTU communication protocol
• Service: Compatible with clean or dirty conductive liquids

Technical Specifications

• Range: 0 to 20 ft/s (0 to 6 m/s)
• Wetted Materials Body Shaft/Fitting: 316 SS
• Accuracy: ±0.5% of reading at calibrated velocity
• Temperature Limits Ambient: -20 to 160°F (-29 to 71°C)
• Process Connection: 1 inch NPT or BSPT
• Pressure Limits: 400 psi (27.6 bar) @ 100°F (37.8°C)
• Outputs: Analog (4 to 20 mA, 0 to 5 V, 0 to 10 V), Alarm functions
• Power Requirements: 12 to 42.4 VDC, 0.25 A @ 24 VDC
• Enclosure Material: Powder coated die cast aluminum
• Approvals: BTL, CE, NSF/ANSI 61 and 372 pending
• Warranty: 2 year limited
