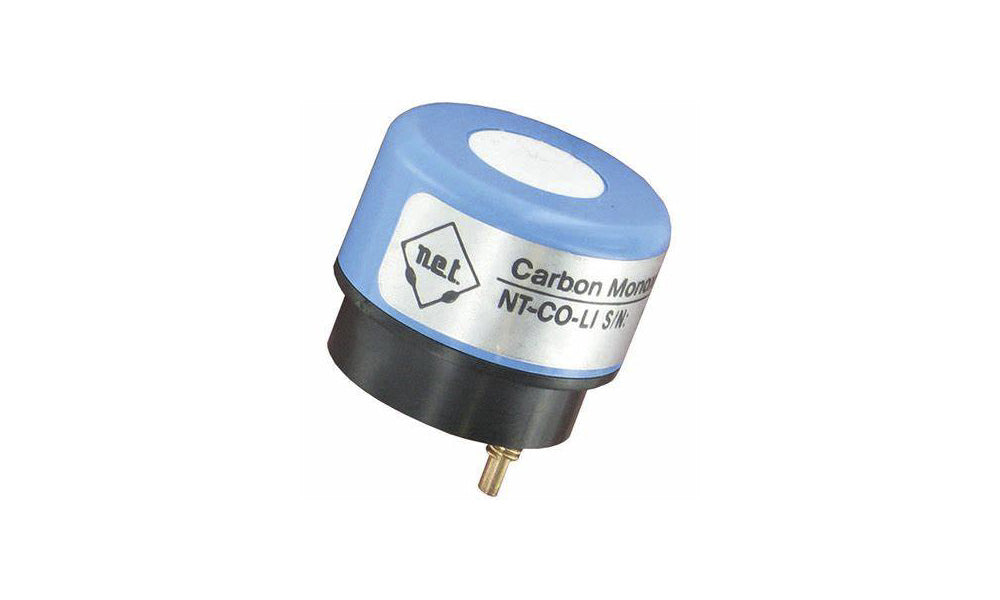

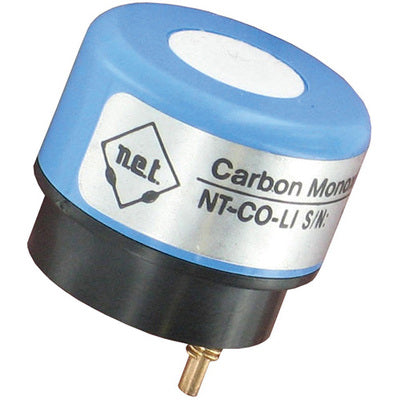

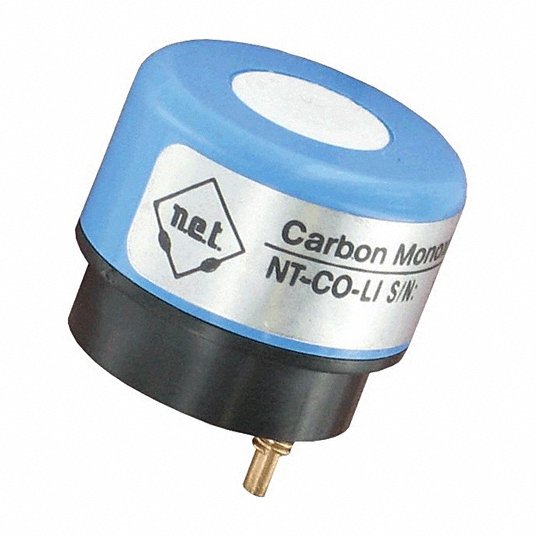

Dwyer A-505 CO Replacement Sensor (0-500 ppm CO) replacement A505

Product Description

The DWYER A-505 replacement carbon monoxide sensor is for the GSTA & GSTC Series. It monitors gas concentration in underground parking garages and loading docks. It measures the exhaust of gasoline engines. Field selectable current and voltage outputs allow the transmitter to be used with almost any building management controller.

• Field selectable current and voltage outputs
• Field selectable CO output ranges
• Field calibration with remote LCD display

Product Highlights

Replacement carbon monoxide sensor for gas transmitters and switches. Field-scalable to 0-200 ppm CO on GSTA models.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: A-505
• Country of Origin: Japan

Technical Specifications

• Media Compatibility: Toxic Gas
• Display: No
• Process Variable: Gas Detection
• Measurement Range: 0 - 200, 0 - 500 ppm CO
• Application: Commerical Building, Industrial Site, Hospital, Mine, Aircraft
• Output Signal: Current
• Measuring Range: 0-200 or 0-500 ppm CO
• Is FM: No
• Primary brand: Dwyer
• Main function: Sensor (CO)
• Functions: Replacement carbon monoxide sensor for the GSTA & GSTC Series; Model CMT200
• Manufacturer product status: Commercialized
• Equivalent to: A505
• Brand: DWYER
• Gas Detected: Carbon Monoxide
• Product Type: Dwyer CMT200; Dwyer GSTA; Dwyer GSTC
• Compatible Detector Manufacturer Part Number: Dwyer CMT200; Dwyer GSTA; Dwyer GSTC
• Manufacturer Part Number: A-505
• Detection Product Type: Gas Detector
