Product Description

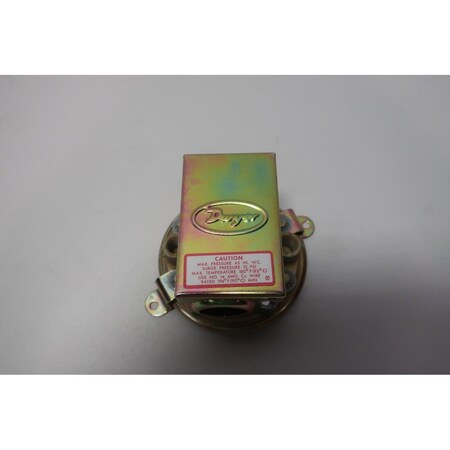

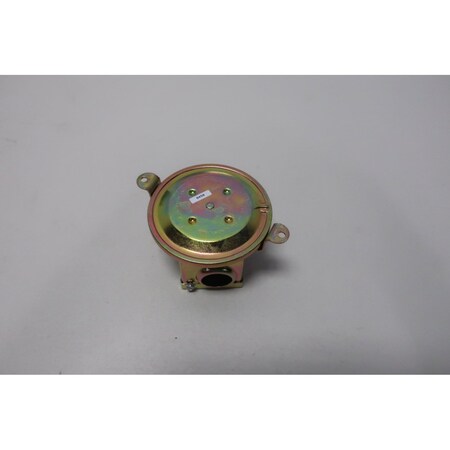

The Dwyer Model 1910-00 Compact Low Differential Pressure Switch is designed for precision and reliability, suitable for a wide range of industrial applications including HVAC systems. This model from Dwyer, a trusted name in pressure measurement, ensures accurate monitoring and control of air and gas pressures.
- High precision in differential pressure measurement from 0.07 to 0.15 inches of water column.
- Durable construction suitable for non-combustible, compatible gases.
- Easy set point adjustment within a protected enclosure to prevent tampering.
Product Highlights
This compact switch offers consistent performance and high durability, making it ideal for air conditioning services and other industrial applications. Its versatility is enhanced by its range of models covering from 0.07 to 20 inches w.c., catering to varied industrial needs.
Product Information
Standard Information
-
Service Compatibility: Air and non-combustible compatible gases.
-
Temperature Limits: -30 to 180 degrees Fahrenheit.
Technical Specifications
-
Pressure Limits: 45 inches w.c. continuous, 10 psi surge.
-
Switch Type: Single-pole double-throw (SPDT).
-
Electrical Rating: 15 A at 120-480 VAC, 60 Hz.
-
Process Connections: 1/8 inch female NPT.
-
Mounting Orientation: Vertical diaphragm positioning.
-
Adjustment: Screw type inside conduit enclosure.
-
Weight: 1.15 pounds.
-
Approvals: CE, CSA, FM, UL.
-
Optional: Explosion-proof enclosure available.
