Duro Dyne 14176 SAT 8X2 Screws 1000PK

Product Description

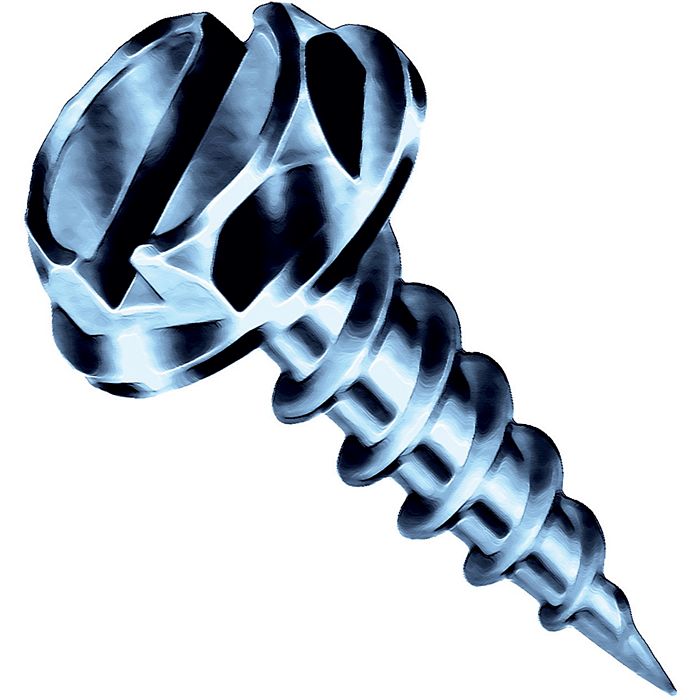

The DURO DYNE 14176 SAT 8X2 self-piercing screw features a hex and slotted drive style, a #8 nominal diameter, and 15 TPI. Constructed from steel with a zinc-plated finish, it conforms to JIS 1125 standards. It is designed for light to medium gauge materials.

• Thread designed to pull the screw through steel with no strip-out.
• Precision formed point for consistent performance.
• Corrosion resistant.

Product Highlights

This self-piercing screw offers time-saving performance with a saber sharp piercing point and fine cut machine thread. It is case hardened to Rockwell C55 minimum.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 14176

Technical Specifications

• Drive Style: Hex, Slotted
• Nominal Diameter: #8
• TPI: 15
• Length: 2 Inch
• Material: Steel
• Finish: Zinc Plated
• Applicable Standard: JIS 1125
• Brand Name: SUPER SABER
• Manufacturer Name: Duro Dyne
• Manufacturer Part Number: 14176
• Drive Size: 1/4 Inch
• Maximum Piercing Capability: 0.044 Inch
• Minimum Torsional Strength: 32.5 Inch-Pound
• Head Type: Hex
• Point Type: Self-Piercing
• Series: SAT
