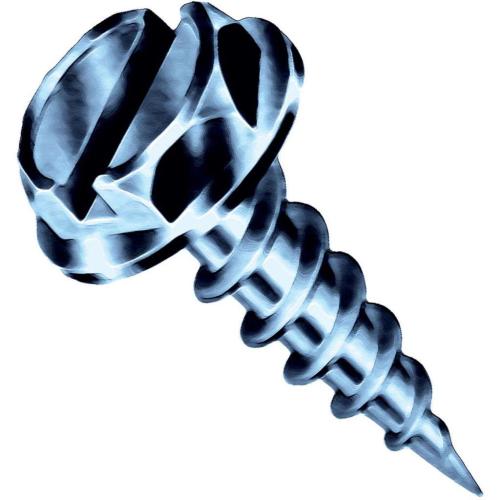

Duro Dyne 14162 SAT 10X1/2 1000PK Screws

Product Description

The DURO DYNE 14162 SAT 10X1/2 self-piercing screw features a hex and slotted drive style, #10 nominal diameter, and 12 TPI. Constructed from steel with a zinc-plated finish, it conforms to JIS 1125 standards. Designed for light to medium gauge materials, the screw's thread is engineered to pull through steel without strip-out.

• Thread designed to pull the screw through steel with no strip-out
• Precision formed point for consistent performance
• Corrosion resistant

Product Highlights

This self-piercing screw offers time-saving performance with its saber sharp piercing point and fine cut machine thread.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 14162
• Country of Origin: Taiwan

Technical Specifications

• Drive Style: Hex, Slotted
• Nominal Diameter: #10
• TPI: 12
• Length: 1/2 Inch
• Material: Steel
• Finish: Zinc Plated
• Applicable Standard: JIS 1125
• Drive Size: 1/4 Inch
• Maximum Piercing Capability: 0.044 Inch
• Minimum Torsional Strength: 51.5 Inch-Pound
• Brand Name: SUPER SABER
• Manufacturer Name: Duro Dyne
• Manufacturer Part Number: 14162
• UNSPSC Code: 31161506
• Series: Super Saber Series
• Thread Size: #10
• Manufacturer Product Family: 301
• Country of Origin: Taiwan
• Pieces per carton: 1000
• Point Type: Self-Piercing
• Overall Length: 1/2 in
