Duravent 46DVA-CL34KFB Direct Vent Pro 3x4 Co-Linear Reline Kit AL Flex

Product Description

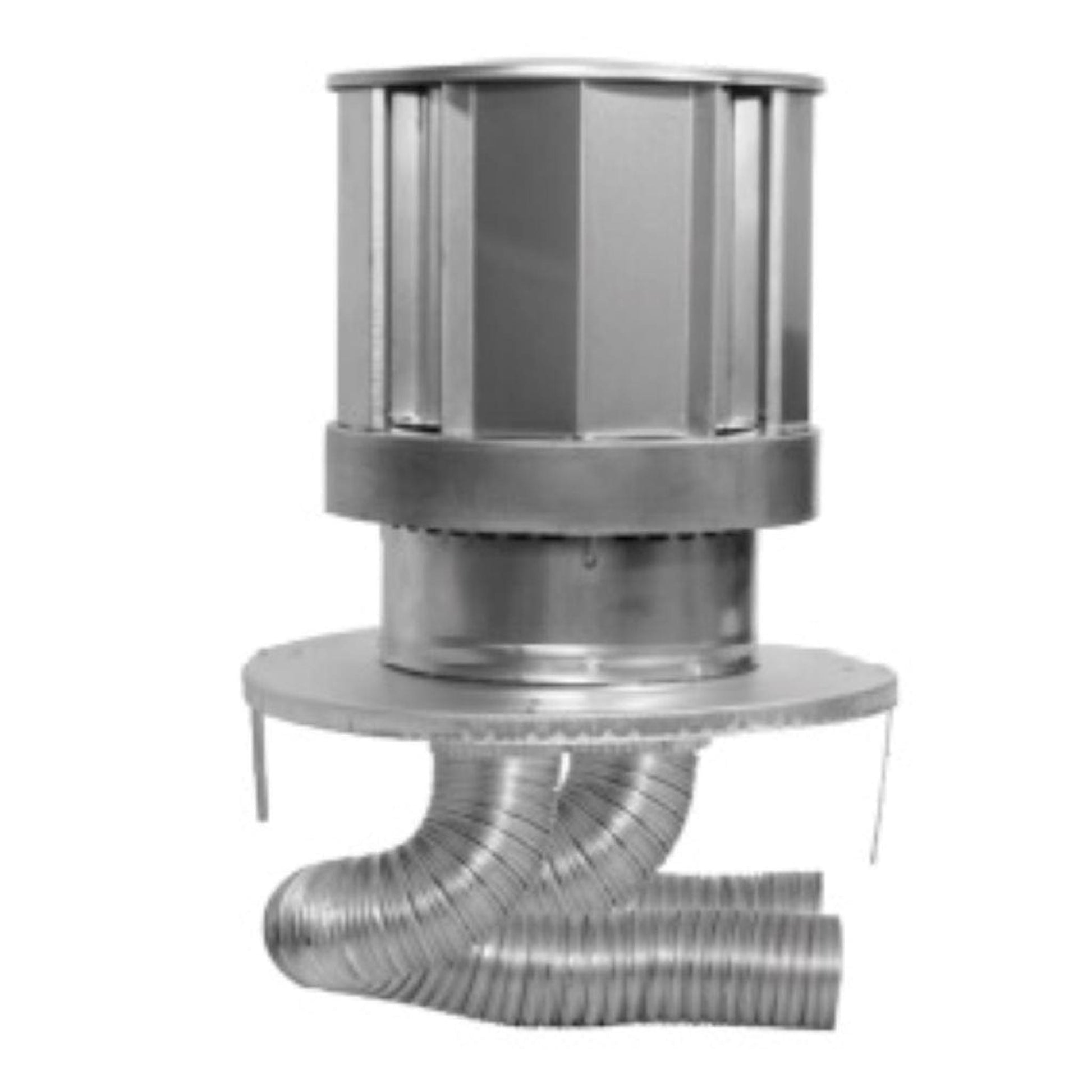

The DURAVENT 46DVA-CL34KFB Direct Vent Pro 3x4 Co-Linear Reline Kit AL Flex is designed for installing a direct vent co-linear insert into an existing factory-built chimney. The kit includes a high-wind termination cap, two pieces of aluminum flex lengths, and four hose clamps. DirectVent Pro features tight inner connections for performance.

• Direct Vent Pipe For Gas Fireplaces & Gas Stoves
• Use when installing a direct vent co-linear insert into an existing factory-built chimney.
• Kit includes: High-Wind Termination Cap, Two pieces of Aluminum Flex Lengths, and 4 hose clamps.

Product Highlights

This DuraVent kit provides the necessary components for a co-linear reline installation, ensuring a secure and efficient venting system for gas fireplaces and stoves.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 46DVA-CL34KFB

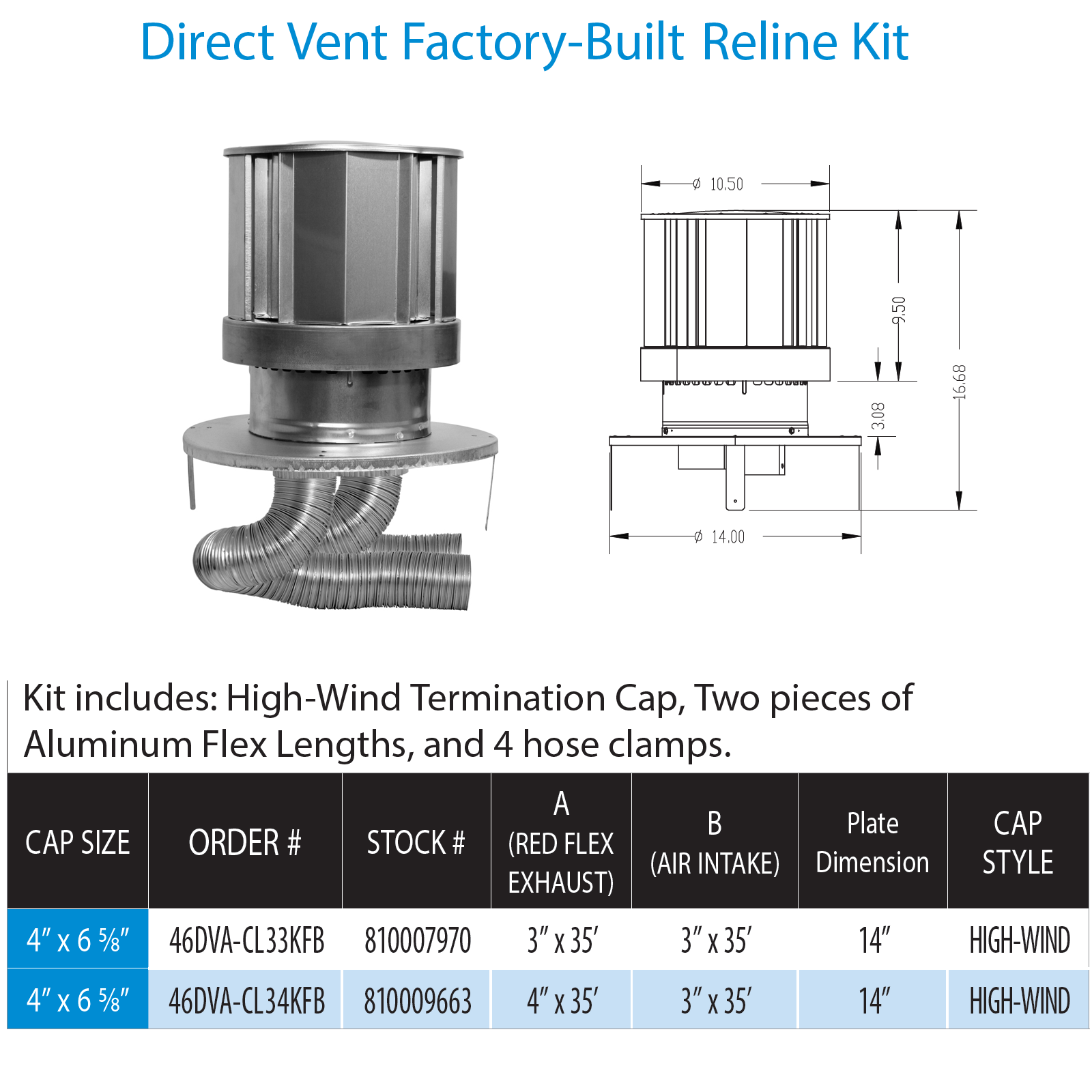

Technical Specifications

• Inner Pipe: 4"
• Outer Pipe: 6 5/8"
• Diameters: 4” x 6 5⁄8” and 5” x 8”
• Model: 46DVA-CL34KFB
• Cap Size: 4" x 6.625"
• Cap Style: High-Wind
• Red Flex Exhaust: 4" x 35' (A)
• Air Intake: 3" x 35' (B)
• Plate Dimension: 14" Diameter
• Height: 16.68"
• Applications: Direct vent gas, propane stoves, heaters, and fireplaces
• Clearances: Specified by the appliance manufacturer
• Listings: UL, CSA, or Warnock Hersey
