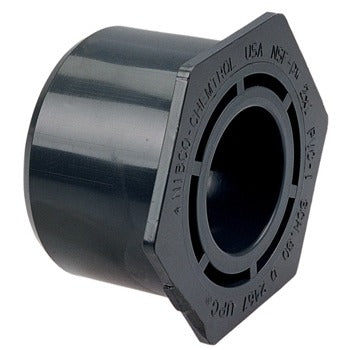

Dura Plastic PVC80BUSHSPS134 Schedule 80 Reducer Bushing

Product Description

The DURA PLASTIC PVC80BUSHSPS134 is a flush socket reducer bushing manufactured from PVC Schedule 80 material. It transitions a 1-inch female socket connection down to a 3/4-inch male spigot connection, with the spigot end fitting directly into a standard socket on the mating fitting. The flush design keeps the bushing seated cleanly inside the receiving socket without protruding. Schedule 80 PVC construction provides thicker walls and higher pressure ratings than Schedule 40, making this fitting suitable for demanding water distribution and chemical handling systems. Licensed plumbers, pipefitters, and pool and irrigation technicians are the typical installers.

This bushing is used in residential and commercial PVC piping systems where a pipe or fitting size reduction from 1 inch to 3/4 inch is required. Common applications include potable water supply lines, pool and spa circulation plumbing, irrigation mainlines, and industrial chemical conveyance where PVC is an approved material. The spigot by socket (Spg x S) end configuration allows the bushing to be inserted into a 1-inch socket on a tee, elbow, or coupling, while a 3/4-inch pipe or fitting slips into the opposite end.

Key Features

• Schedule 80 PVC construction for increased wall thickness and higher pressure performance compared to Schedule 40
• Flush socket design seats completely inside the mating fitting for a clean, compact transition
• 1-inch spigot inlet mates directly into any standard 1-inch Schedule 40 or Schedule 80 socket
• 3/4-inch socket outlet accepts standard 3/4-inch Schedule 40 or Schedule 80 pipe or spigot fittings
• Compatible with solvent-cement joining methods standard to PVC piping systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for PVC Schedule 80 piping systems requiring a 1-inch to 3/4-inch socket reducer bushing with a spigot by socket end configuration.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and local plumbing code requirements. Shut off and depressurize the system completely before cutting into any existing line. Use a purpose-formulated PVC primer and Schedule 80-rated solvent cement, applying per the cement manufacturer's instructions for proper cure time before returning the system to service. Do not use this fitting in systems conveying fluids or at temperatures outside the published ratings for Schedule 80 PVC.

Technical Specifications

• Material: PVC Schedule 80
• Inlet Size: 1 inch
• Outlet Size: 3/4 inch
• End Configuration: Spigot x Socket (Spg x S)
• Style: Flush Socket Reducer Bushing

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC80BUSHSPS134
