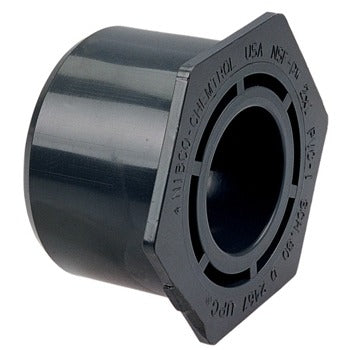

Dura Plastic PVC80BUSHSPS11434 Sch 80 Reducer Bushing

Product Description

The DURA PLASTIC PVC80BUSHSPS11434 is a flush socket reducer bushing manufactured from Schedule 80 PVC. It transitions a 1-1/4 inch line down to a 3/4 inch connection using a spigot inlet and a socket outlet. Schedule 80 PVC carries a thicker wall than Schedule 40, making it the standard choice in industrial, chemical, and high-pressure plumbing applications where added pressure rating and mechanical strength are required. Plumbers and pipefitters install this fitting when reducing pipe size within a run without adding significant length to the assembly.

This reducer bushing is suited for residential and commercial plumbing, irrigation systems, chemical distribution lines, and industrial process piping where PVC Schedule 80 fittings are specified. The spigot end inserts directly into a standard Schedule 80 socket fitting, keeping the overall assembly compact. The socket end accepts 3/4 inch Schedule 80 pipe or a spigot fitting. It is a dry-fit compatible design, solvent-welded during installation.

Key Features

• Schedule 80 PVC construction for higher pressure ratings compared to Schedule 40
• Flush bushing design minimizes added length in the pipe run
• 1-1/4 inch spigot inlet to 3/4 inch socket outlet configuration
• Compatible with standard PVC solvent cement joining methods
• Suitable for use in corrosive fluid and chemical piping systems

Compatibility

Designed as an OEM-style replacement and new-installation fitting for Schedule 80 PVC piping systems requiring a 1-1/4 inch to 3/4 inch spigot-by-socket reduction.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC or local plumbing code requirements. Before installation, shut off and depressurize the affected line completely. Clean and deburr pipe ends, apply PVC primer where required by code, then join with a listed PVC Schedule 80 solvent cement. Allow full cure time per the cement manufacturer instructions before returning the system to service.

Technical Specifications

• Material: PVC Schedule 80
• Inlet Size: 1-1/4 inches (Spigot)
• Outlet Size: 3/4 inches (Socket)
• Connection Type: Spigot x Socket (Flush Bushing)
• Schedule: Schedule 80

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC80BUSHSPS11434
