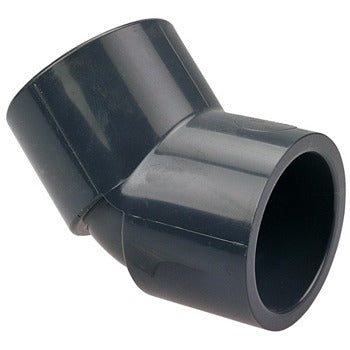

Dura Plastic PVC8045L4 Schedule 80 Socket 45 Elbow 4 in

Product Description

The DURA PLASTIC PVC8045L4 is a 4-inch Schedule 80 PVC socket elbow fitting designed to change flow direction by 45 degrees in pressure-rated piping systems. Built from rigid PVC, this fitting accepts socket (slip) connections on both ends, allowing solvent-welded joints in new construction and repair applications. Schedule 80 PVC has a thicker wall profile than Schedule 40, making it appropriate for higher-pressure service and installations where added durability and impact resistance are required. Plumbers and pipe fitters use this fitting in commercial and industrial fluid handling systems.

This elbow is suited for residential and commercial plumbing, irrigation, chemical processing, and industrial fluid distribution where a 45-degree directional change is needed in a 4-inch PVC line. The socket-by-socket (S x S) configuration means both the inlet and outlet accept pipe ends for standard solvent-cement joining. It is commonly used in drain, waste, and vent layouts, pressure distribution lines, and pool or spa plumbing where Schedule 80 wall thickness is specified or required by code.

Key Features

• Schedule 80 PVC construction provides thicker walls and higher pressure ratings compared to Schedule 40
• 45-degree bend angle for gradual directional changes that reduce flow turbulence
• 4-inch nominal size with socket (slip) connections on both ends
• Solvent-weld joining method for secure, leak-resistant permanent connections
• Suitable for a wide range of fluid handling applications including pressure lines, irrigation, and pool plumbing

Compatibility

Designed as an OEM-style replacement and standard fitting for 4-inch Schedule 80 PVC piping systems using solvent-cement socket connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASTM standards for PVC solvent-welded fittings. Shut off system pressure and drain the line completely before cutting into an existing run. Use a PVC-rated primer and solvent cement appropriate for Schedule 80 fittings, and allow full cure time before pressurizing the system. Do not use with incompatible solvents, threaded adapters not rated for Schedule 80, or outside the fitting's rated temperature and pressure range.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Nominal Size: 4 inches
• Bend Angle: 45 degrees
• Connection Type: Socket x Socket (S x S) Solvent Weld

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC8045L4
