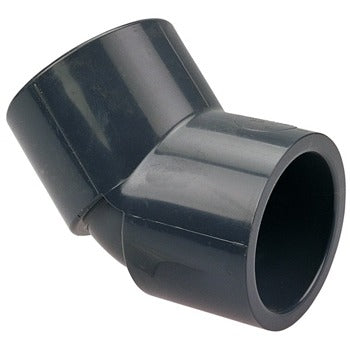

Dura Plastic PVC8045L34 Schedule 80 45 Deg Socket Elbow

Product Description

The DURA PLASTIC PVC8045L34 is a 3/4 inch Schedule 80 PVC 45-degree socket elbow designed for pressure-rated piping systems. This fitting accepts socket (slip) connections on both ends and changes flow direction at a 45-degree angle, reducing turbulence compared to a sharp 90-degree turn. Schedule 80 wall thickness provides higher pressure ratings and greater impact resistance than Schedule 40, making this elbow appropriate for demanding industrial, chemical, and commercial plumbing applications. Licensed plumbers and pipefitters are the typical installers of this type of fitting.

This elbow is used in both residential and commercial piping systems where a moderate directional change is required without the pressure loss of a 90-degree elbow. Common applications include chemical process lines, irrigation systems, pool and spa plumbing, industrial water distribution, and compressed-air systems where PVC is an approved material. The socket-by-socket configuration allows solvent-cement joining on both ends, which is standard practice for PVC pressure piping.

Key Features

• Schedule 80 PVC construction provides higher pressure rating and thicker walls than Schedule 40
• 45-degree angle change reduces flow turbulence and pressure loss compared to 90-degree fittings
• Socket by socket (slip x slip) ends accept standard solvent-cement joining
• 3/4 inch nominal pipe size fits standard PVC pipe of the same schedule
• Compatible with a wide range of chemical media handled by PVC piping

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch Schedule 80 PVC pressure piping systems joined by solvent cement.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC or local authority requirements. Depressurize and drain the piping system completely before cutting or joining any fittings. Use only PVC-rated primer and solvent cement appropriate for Schedule 80 pipe and fittings, and allow full cure time before returning the line to service. Do not use this fitting on systems exceeding the published pressure and temperature ratings for Schedule 80 PVC.

Technical Specifications

• Material: PVC Schedule 80
• Pipe Size: 3/4 inch
• Connection Type: Socket x Socket (Slip x Slip)
• Angle: 45 degrees

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC8045L34
