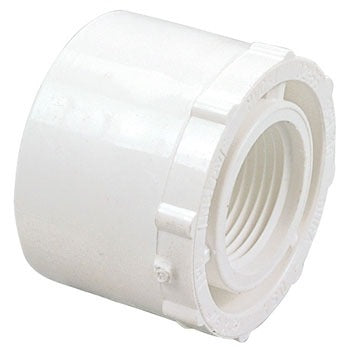

Dura Plastic PVC40BUSHSPFIP2114 Schedule 40 Bushing

Product Description

The DURA PLASTIC PVC40BUSHSPFIP2114 is a Schedule 40 PVC reducing bushing designed to transition a 2-inch spigot connection to a 1-1/4-inch female iron pipe thread (FIPT) connection. This fitting is built for use in pressure piping systems where a reduction in line size is required at a threaded junction. Constructed from rigid PVC, it meets the demands of standard residential and commercial plumbing, irrigation, and pool or spa piping. Licensed plumbers and pipe fitters install this type of bushing when connecting a larger-diameter pipe or fitting to a smaller-diameter threaded port or valve.

This bushing is suited for cold and ambient-temperature water distribution systems, including potable water supply lines, irrigation manifolds, and pool equipment piping. The spigot end inserts directly into a 2-inch Schedule 40 socket fitting, while the FIPT end accepts a 1-1/4-inch male-threaded component such as a valve, pump port, or nipple. It is a common fitting used in residential and light commercial piping layouts where line reduction and a transition to threaded connections are needed at the same point.

Key Features

• Reduces from 2-inch spigot to 1-1/4-inch FIPT in a single fitting
• Schedule 40 PVC construction rated for standard pressure piping service
• Spigot end solvent-welds into any 2-inch Schedule 40 socket fitting
• FIPT end accepts standard 1-1/4-inch male NPT threaded components
• Suitable for potable water, irrigation, and pool or spa plumbing applications

Compatibility

Designed as an OEM-style replacement and standard-use bushing for Schedule 40 PVC pressure piping systems using 2-inch socket fittings and 1-1/4-inch male NPT threaded connections.

Installation Notes

Installation is performed by a licensed plumber or qualified pipe fitter. Shut off the water supply and depressurize the line before beginning work. The spigot end requires solvent cement applied per the fitting and cement manufacturer instructions, following ASTM standards for PVC pressure joints. The FIPT connection should be made with appropriate thread sealant tape or compound rated for PVC use. Do not over-torque the threaded connection, as PVC threads can crack under excessive force.

Technical Specifications

• Inlet Size: 2 inches (Spigot)
• Outlet Size: 1-1/4 inches (FIPT)
• Schedule: Schedule 40
• Material: PVC
• Connection Type: Spigot x Female Iron Pipe Thread (FIPT)
• Application: Pressure Fitting

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC40BUSHSPFIP2114
