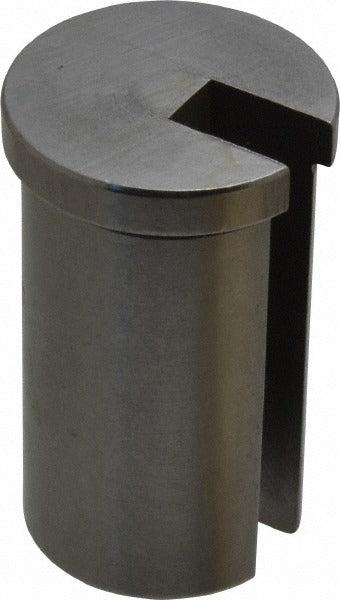

Dumont Minute Man 44507 Collared Broach Bushing 35mm

Product Description

The DUMONT MINUTE MAN 44507 is a Style C collared broach bushing with a 35mm overall diameter. Broach bushings guide and support broaching tools during keyway, hex, and shaped-hole cutting operations, keeping the broach aligned and protecting the workpiece surface. The collared design seats against the workpiece or fixture face to control broach depth and prevent the bushing from being drawn through the material. This part is installed by machinists, toolroom technicians, and maintenance trades performing precision hole-finishing work on metallic components.

This bushing is suited for bench and floor press broaching applications in production and job-shop environments. It is used wherever a controlled-diameter guide is needed to maintain broach alignment through a pilot hole. The Style C collar configuration is a widely recognized standard in broaching tooling setups and is compatible with standard broaching press fixtures and arbor press configurations.

Key Features

• Style C collared design controls broach depth and prevents pull-through
• 35mm overall diameter for use in correspondingly sized pilot holes and fixtures
• Guides broach during keyway, spline, and shaped-hole cutting operations
• Compact form factor suited for arbor press and hydraulic broaching press use

Compatibility

Designed as an OEM-style replacement or direct-fit broach bushing for standard Style C collared broaching applications requiring a 35mm overall diameter.

Installation Notes

Installation is performed by machinists or toolroom technicians using an arbor press or broaching press. Ensure the pilot hole diameter and fixture bore match the bushing outside diameter before pressing into position. Secure the workpiece firmly before broaching operations begin. Follow applicable shop safety and machine guarding practices during all press operations.
